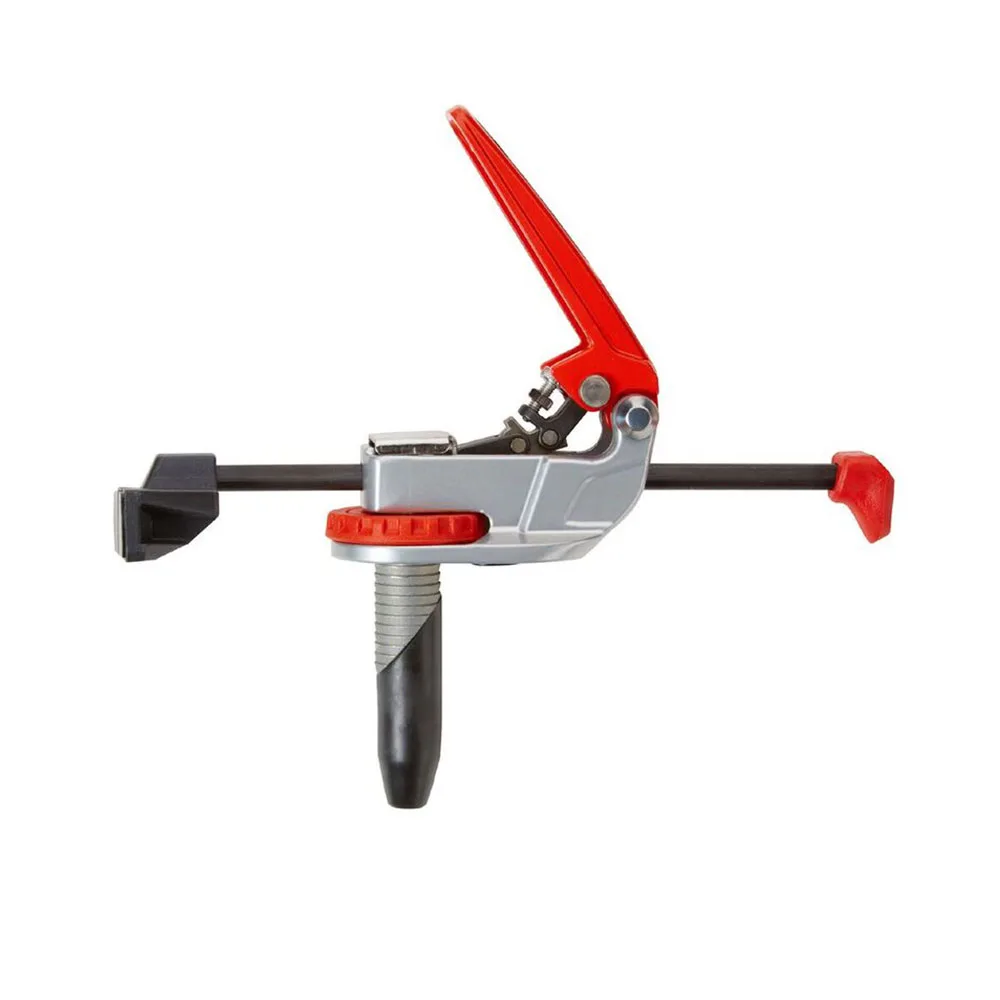

Armor Tool P7-IL Auto Adjust In-Line Dog Clamp

Description

P7-IL Auto-Adjust In-Line Dog Clamp is fitted with a Split Dog Peg that inserts and tightens into a Dog Hole. Eliminates the need for constant readjustment and enables the clamp to maintain clamping pressure regardless of material thickness.
The hardened steel Push Rod applies consistent pressure over a range of material thickness up to 3.75″. Use with Armor Dog Fences to brace material. Great for securing long panels.

Features:
Adjustable Clamping Pressure: The integrated clamping pressure adjustment screw is used to create a wide range of clamping pressures. Rotate the adjustment screw clockwise to decrease the pressure and counterclockwise to increase it. To engage clamp, set push bar against material and press down on the handle.
Versatile Split Dog Peg: Allows clamping wherever a 20mm (Festool and European dog tables) or 3/4″(most standard US dog tables) dog hole is present and has the ability to rotate 360 degrees, enabling quick setups. If you do not have a peg table, simply drill a 3/4″ hole in any worktable.
To engage clamp, set push bar against material and press down on the handle.
Hardened Steel Push Rod: Adjusts in and out quickly to hold varying shapes and sizes up to 3.5″.
Large Handle: Horizontal handle features soft inset for maximum grip and comfort.
Hardened Plastic Tip With Non-Marring Pad: Center notch for secure corner clamping. Also holds rounded materials.
Rotating Lock Knob: Secures clamp in Dog Hole.

*Note Recommended minimum table thickness is 3/4″ for optimal pressure and stability.
Use product only as intended. Modification or use in conjunction with another product or bracket for resale is prohibited. Please contact Armor with any integration resale applications.

Warning: For your protection ALWAYS wear safety goggles, gloves and other appropriate safety equipment
