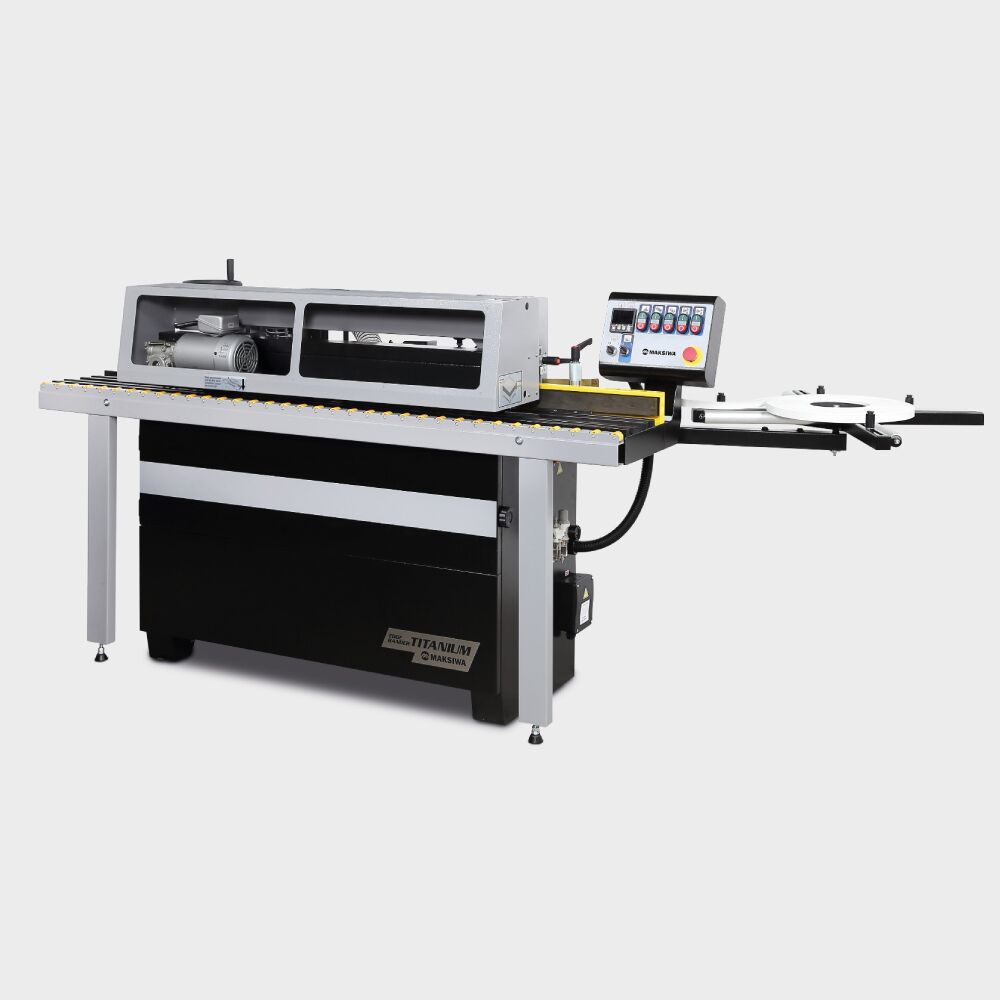

MAKSIWA AUTO EDGEBANDER TITANIUM – 1 PHASE 220V CBC.T

Description

This machine is a master piece of engineering, packet with features that will make your job easier giving you a product finish like never before. Super steady and stable the CBC.T platform is a stainless steel mono-block base. All operating units are easy to be accessed through the upper protection hood.

The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.

Machine frame made out of steel, single block base with superior stability.

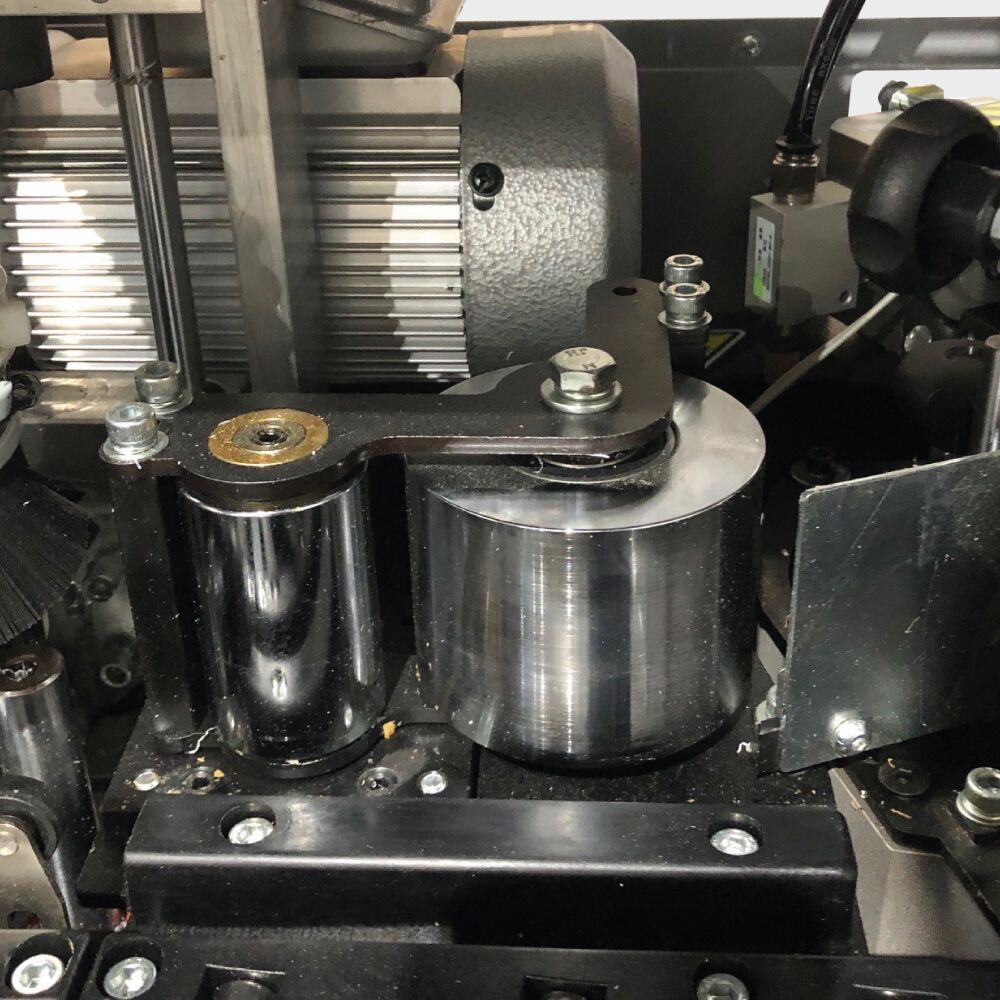

Dual pressure rollers.
Automatic belt feed.
Dust collection Port.
Friction-free worktable.

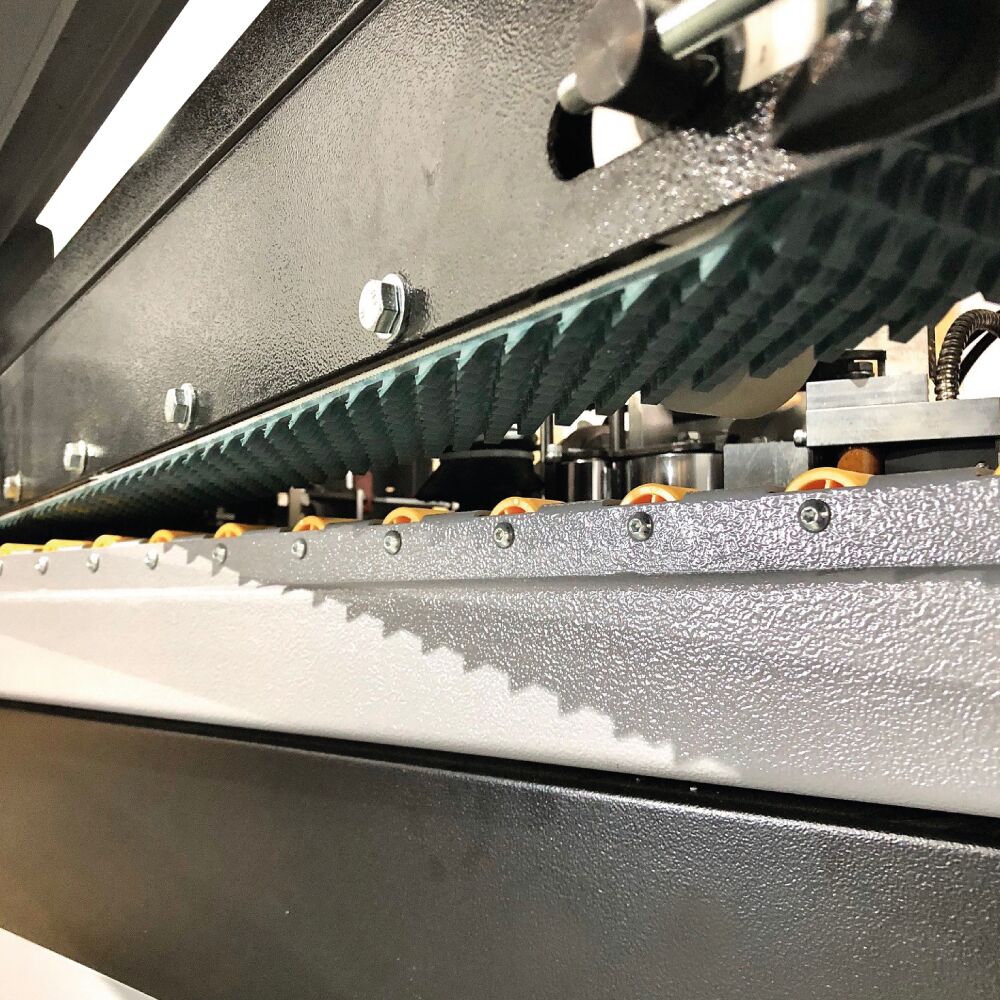

Top feeder with high-adherence toothed head belt with steel cables inside.
Telescopic front support with rollers.
Anodized aluminum outfeed fence.
Emergency push button.

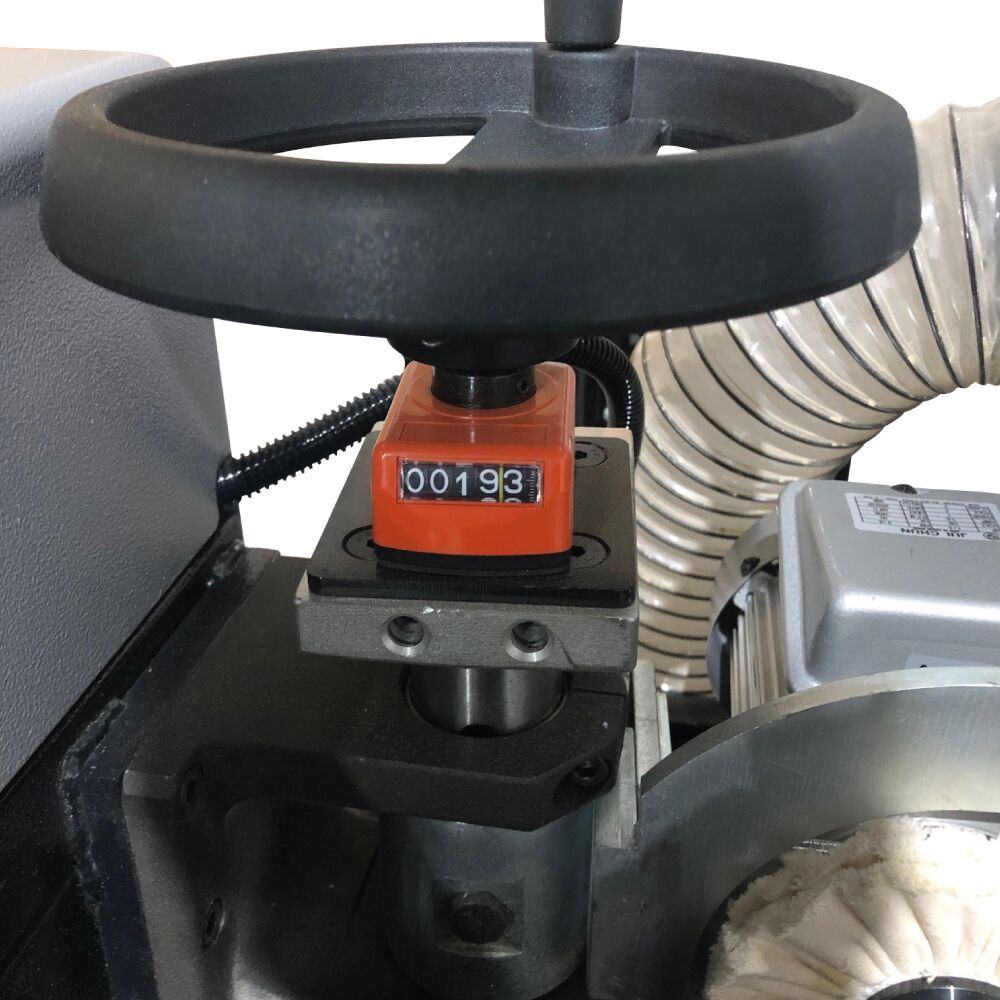

Mechanical indicator for panel thickness.
Mechanical indicators for top and bottom trimmers.
Mechanical indicators on fence for tape thickness.

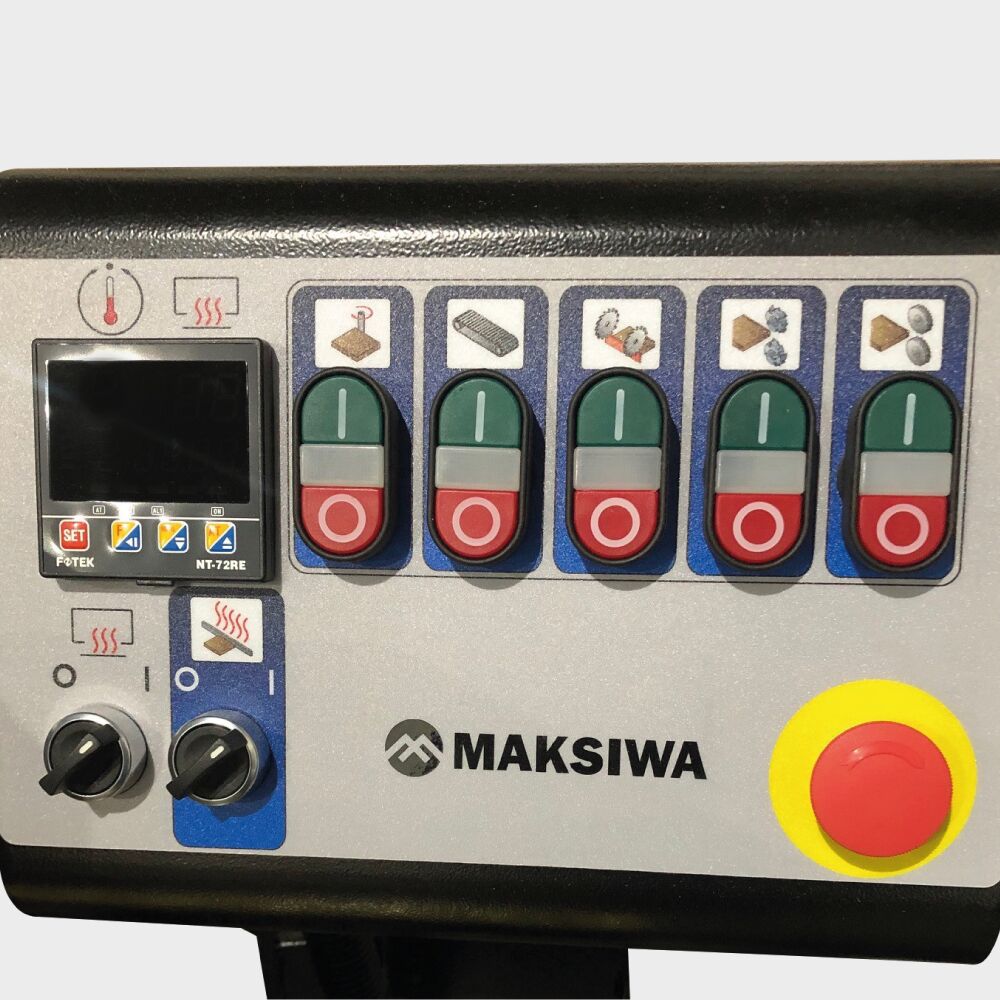

Electrical cabinet with PLC, padlockable main switch and overload protection.

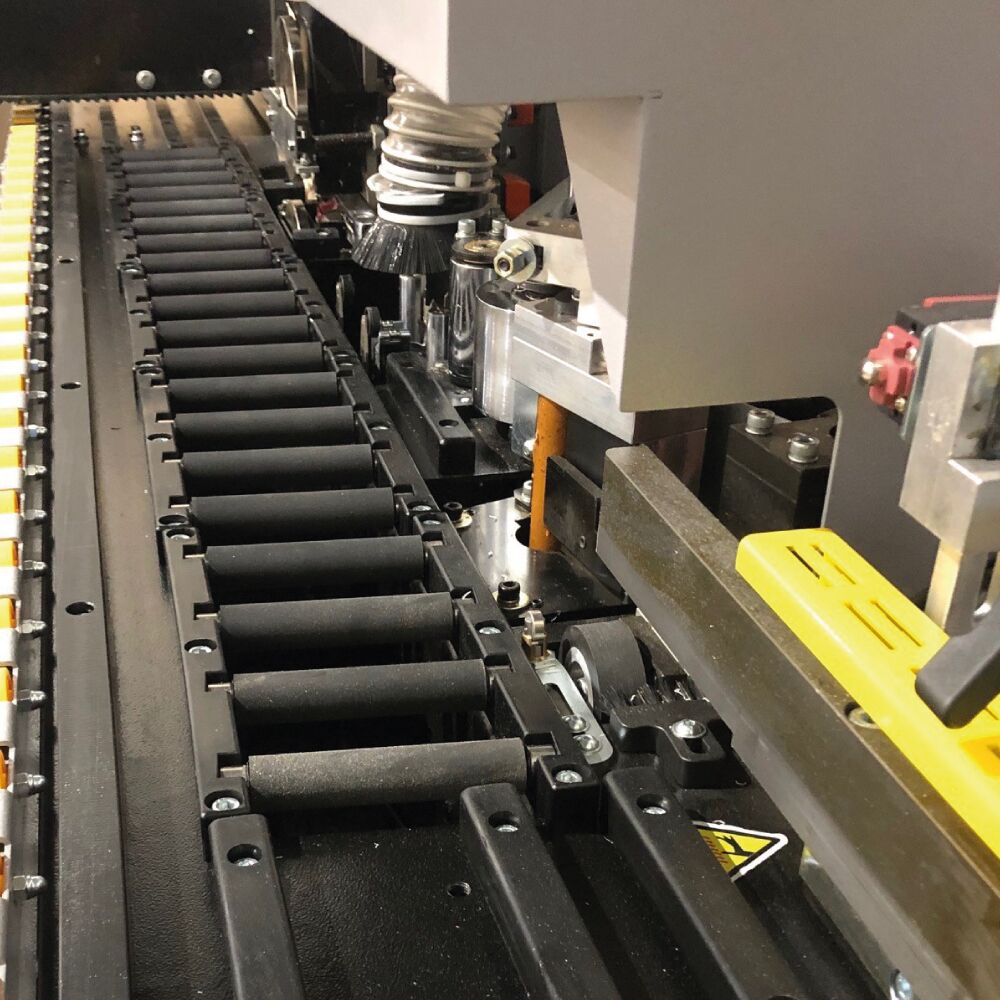

Angled feed rollers in table bed.
Angled feed rollers in table bed.
Roller copy bearings.
End trim with saw blade.
Safety enclosure.

Technical Information

Working table dimensions 2000 x 265 mm
Extensible support 310 mm
Panel thickness 12 / 45 mm
Automatic panel feed speed c.a5 mt/1’
End trimming unit rotation speed 9.000 RPM
Flush trimming unit rotation speed 10.000 RPM
(T.C.T) cutters Ø 75 mm Z4-12° R=2 mm
Dust collection outlet Ø 100 mm
Glue pot elements 1.135 W
Total power installed Ca. 3.3 KW
Voltage 380 – 440/50 – 60/3, 220 – 240/50 – 60/3
Approx. weight (N.W./G.W.) 336 / 385KGS *** 740 / 849LBS
Warranty 2 Years
