Manufacturer of 'Quality Urethane Band Saw Tires'

SuperTLink Wedge Belt 5V 25′ Box 0417025


SuperTLink Wedge Belt 5V is a drop-in upgrade for rubber wedge belts, with industry standard power ratings. The polyester/polyurethane composite SuperTLink Wedge V belt 5V is a problem solving alternative to conventional rubber V-belts. Reduce your V-belt inventory, expect longer belt life, and install quickly and easily.

25′ Box
Installation Instructions

SKU: FDP:0417025 Categories: , , Tags: , , ,


Best Suited For: Nearly any power transmission application designed to use Metric Wedge 5V rubber V-belts.

A Longer Lasting Belt SuperTLink Detachable V-Belts are made from a polyester/polyurethane composite. This combination ensures a longer belt life even in the harshest conditions — up to 20 times longer in some applications.

• High resistance to extreme temperatures (-40° to +116°C)
• High resistance to abrasive materials
• High resistance to water, steam, oil and most chemicals
• Longer belt life in harsh operating conditions

Fit in Minutes, Not Hours The link construction means that belts can be fitted easily and quickly even on inaccessible drives. These SuperTlink V belts for sale can be joined around the shafts without dismantling the drive.

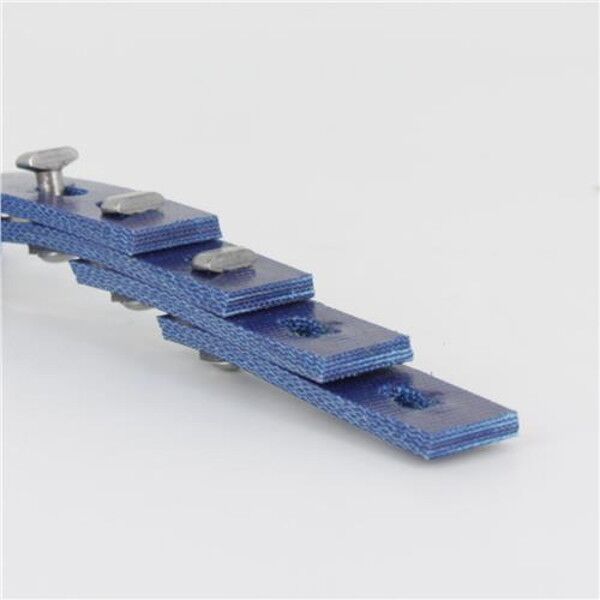

• Links connected with metal T-studs
• Install without dismantling drive

Make to Any Length – Reduce Your Belt Stock SuperTLink Detachable V-Belts, there is no need to hold stocks of every belt length. Make to length on site simply by adding or removing links.

• Reduced V-belt inventory . . . any belt: any time

Minimal Maintenance – Fit & Forget! High quality materials ensure that the belt displays minimal stretch even over long periods. Hence, minimal retensioning is required.

• Permanent drop-in replacements
• High horsepower; low stretch

Reduced Vibration/Noise SuperTLink can reduce transmitted vibration and belt noise by up to 50%.

• Reduced drive vibration & system noise

The Complete Range SuperTLink V belts for sale are available in 3V, 5V, SPZ, SPA, SPB, and SPC sections for your wedge belt drives.

• RoHS 2002/95/EC Directive compliant

Additional information

Weight 4 lbs
Dimensions 11 × 11 × 5 in

– Profile shape: Vee
– Profile size: 5V
– Color: Blue
– Compliancy: RoHS
– Material: Composite Polyester/Polyurethane
– Minimum Pulley Diameter: 140mm, 5.50″
– Top Width: 0.66″, 17mm
– Maximum Ride Height Above Rim: 0.20″ (5.1mm)
– Minimum Ride Height Above Rim: 0.06″ (1.4mm)
