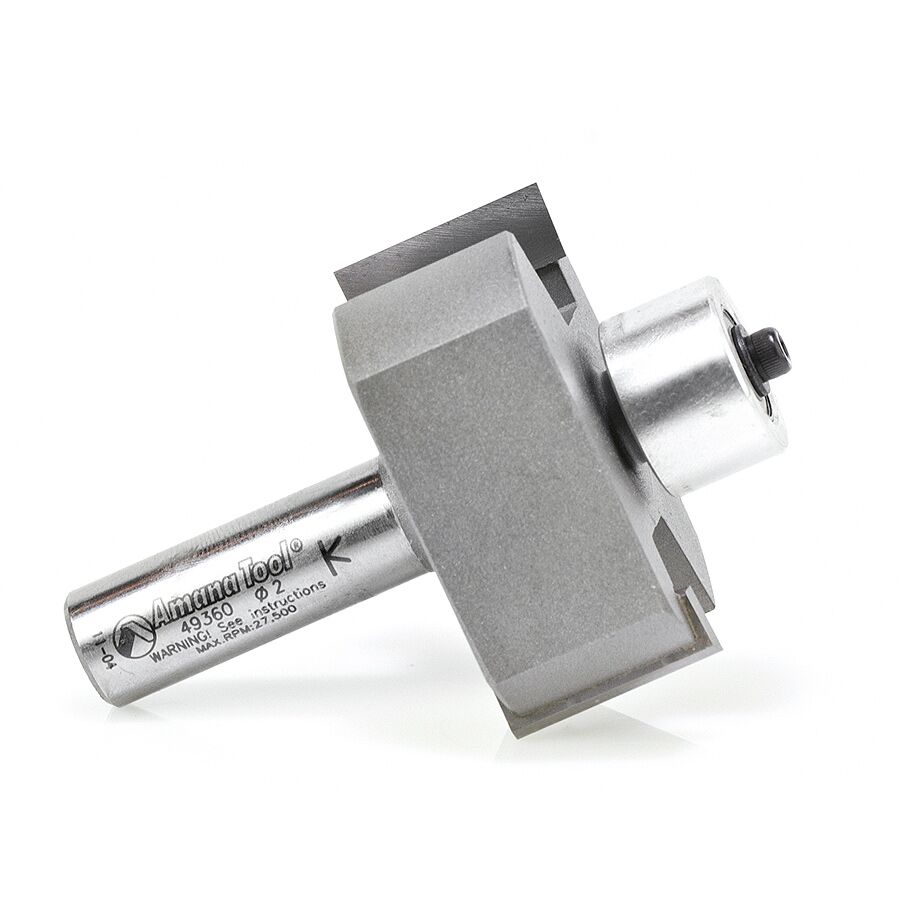

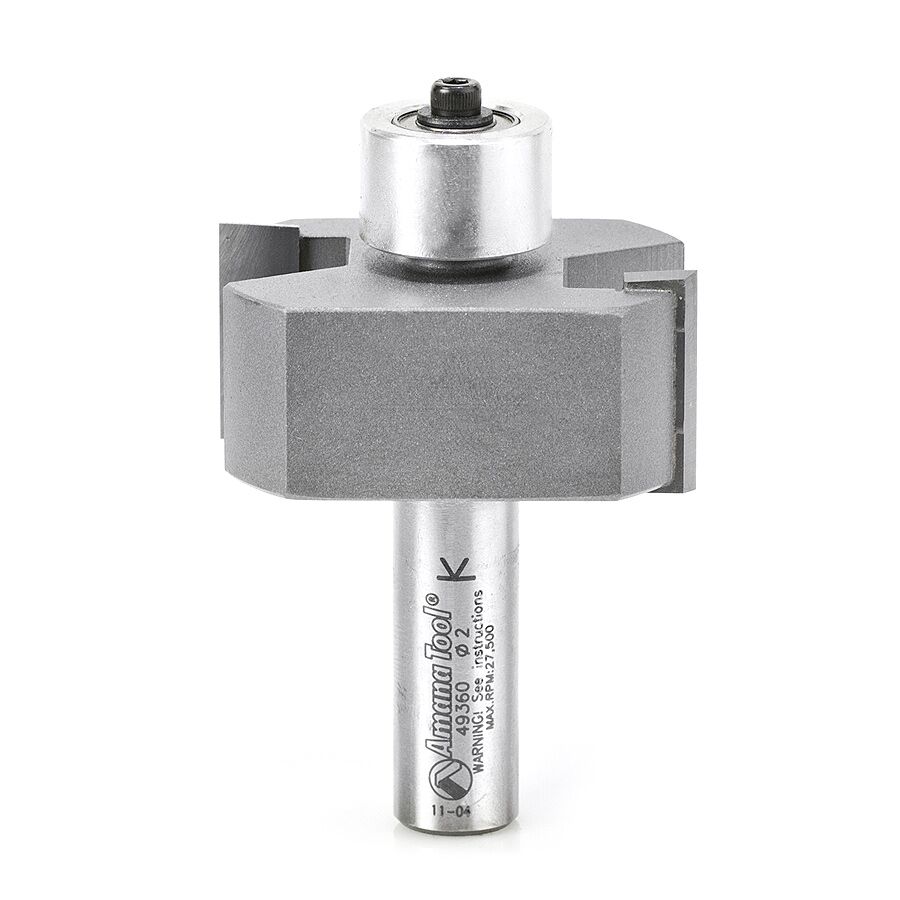

This ingenious tool features both interchangeable cutting edges and an interchangeable guide collar, enabling you to cut a wide range of rabbets. Changing the collars on the twin ball-bearing guide steps the cut width in 1/16″ increments from flush through 3/4″ with five extra “plywood” sizes.
Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2″-diameter bit includes a hex key, instructions, and all necessary parts for 5/8″ and 3/4” width rabbets.
The “RC” version has extra-long double-edged carbide inserts which enables the bit to cut 30mm high. Inserts can be rotated or replaced without removing the bit from the router.
Maximum RPM 22,000.
Use in a table-mounted router. Not for use in a handheld router!
