$143.81

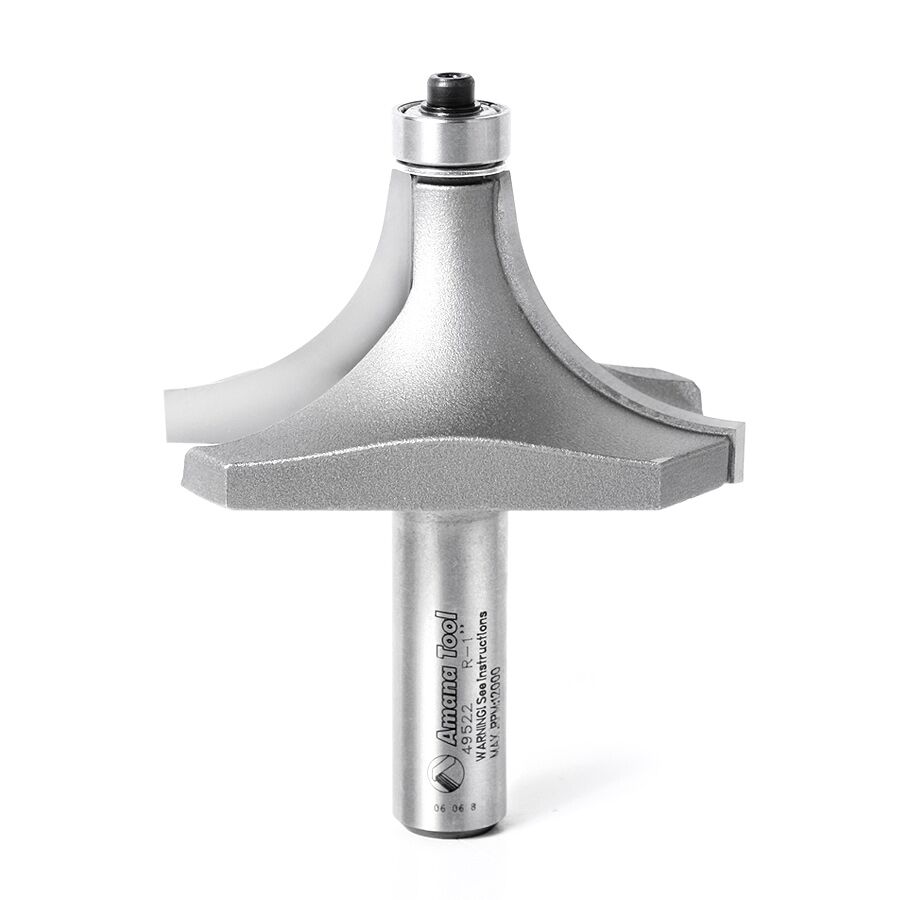

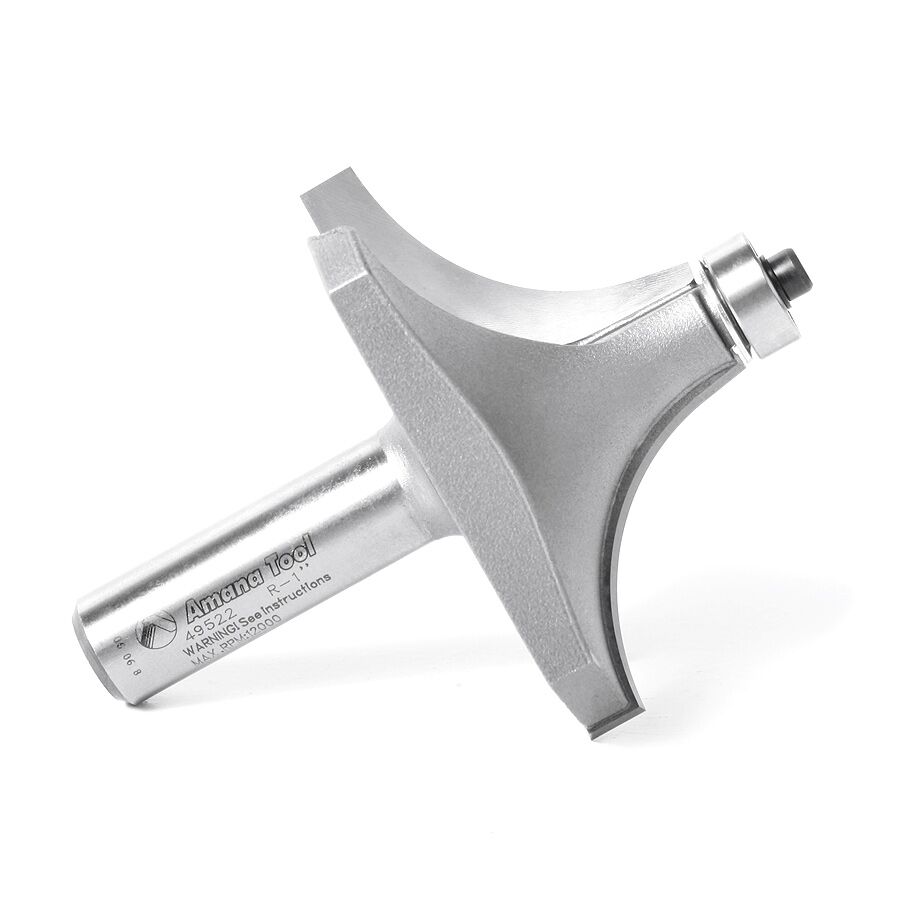

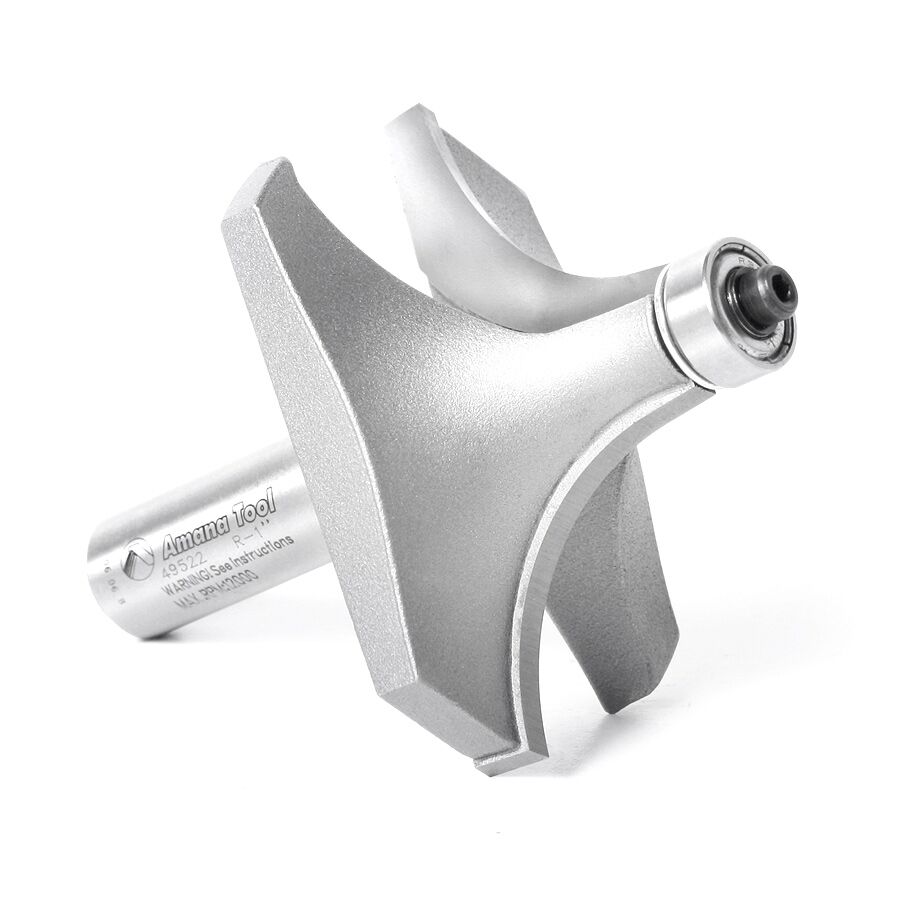

CORNER ROUND 1″ RAD 1/2 SHANK
Specification
Diameter (D) 2-1/2
Radius (R) 1
Cutting Height (B) 1-1/4
Shank (d) 1/2
Overall Length (L) 3-3/16
Replacement Bearing 47706
Flutes 2
D1 1/2
Only 1 left in stock
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. Maximum RPM 18,000. Use in a table-mounted router.ย Not for use in a handheld router!ย Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 8 × 7 × 3 in |
| Shank Size | |
| Bit Profile | |
| Brand |
