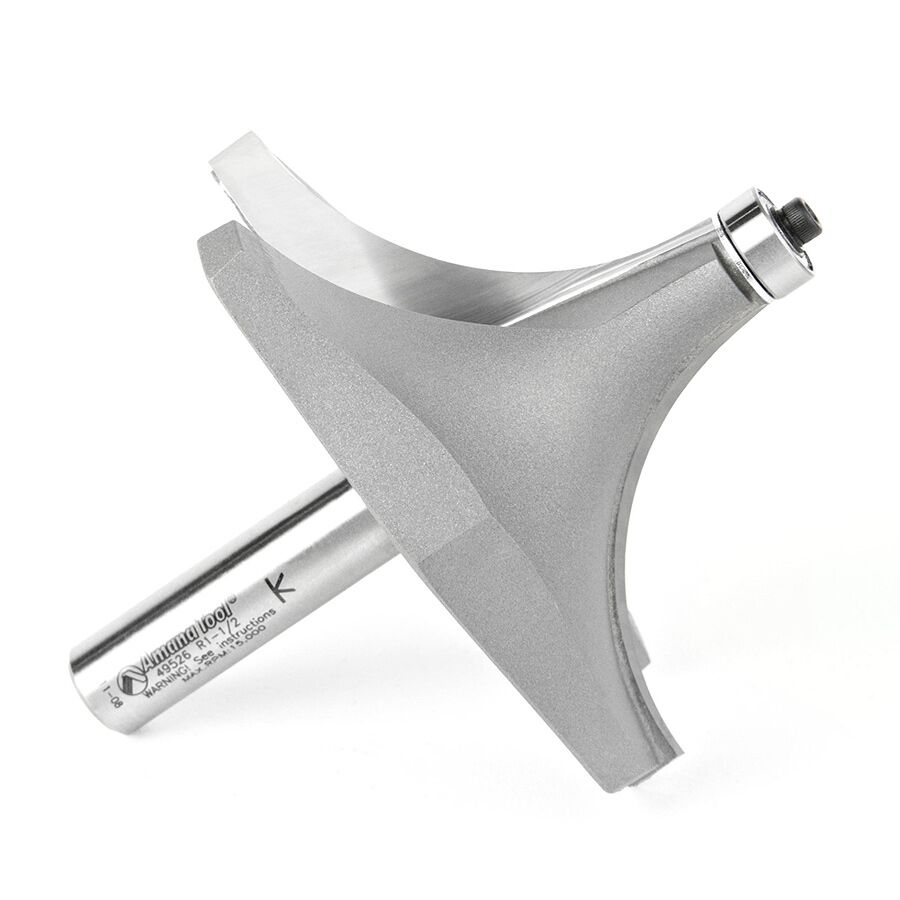

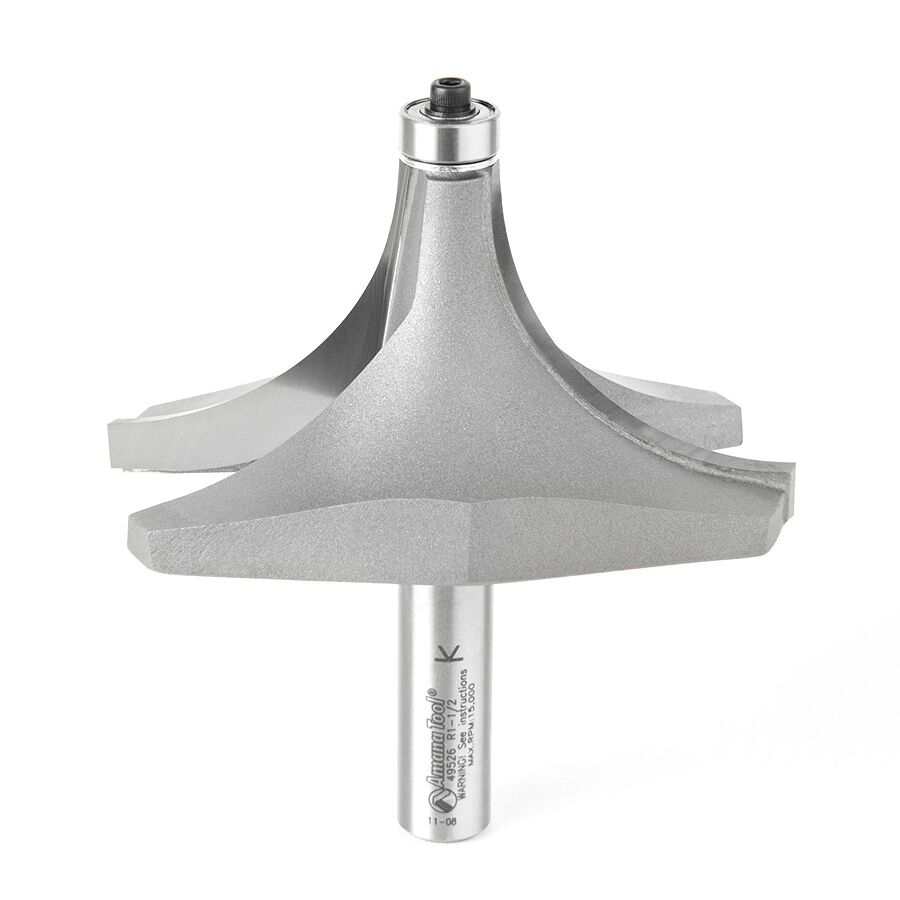

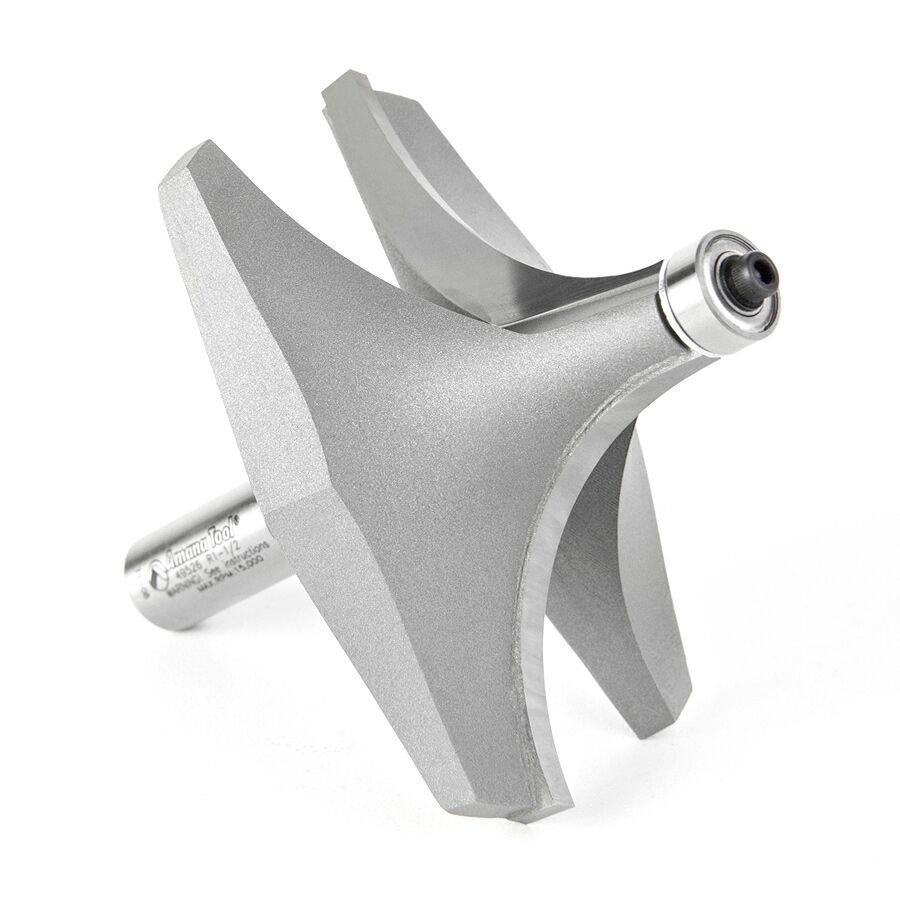

Amana Tool 49526 Carbide Tipped Corner Round 1-1/2 Radius x 3-1/2 Dia x 1-3/4 x 1/2 Inch Shank
$227.24
CORNER ROUND 1-1/2 RAD 1/2 SK
Specification
Diameter (D) 3-1/2
Radius (R) 1-1/2
Cutting Height (B) 1-3/4
Shank (d) 1/2
Overall Length (L) 3-5/8
Replacement Bearing 47706
Flutes 2
D1 1/2
Only 1 left in stock
Description
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. Maximum RPM 18,000. Use in a table-mounted router. Not for use in a handheld router! Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.
Additional information
Shank Size | 1/2" |
---|---|
Bit Profile | Corner Round |
