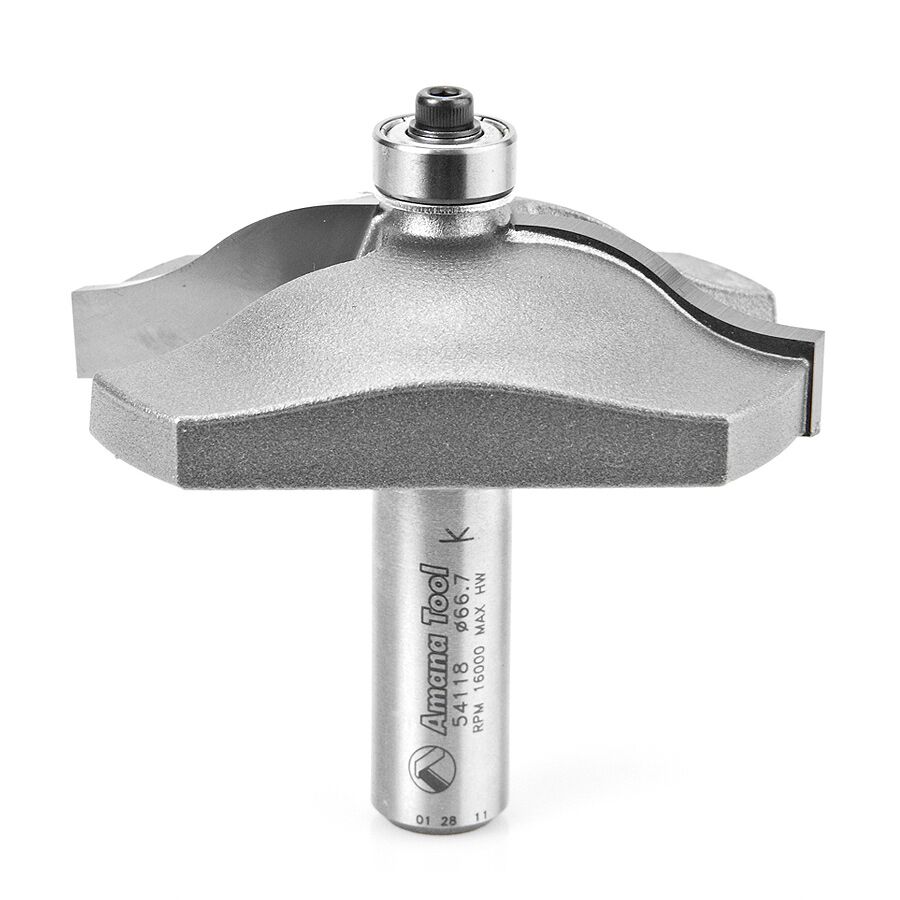

Amana Tool 54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank

$121.70

OGEE RAISED PANEL 1/2 SHANK
Specification
Diameter (D) 2-5/8
Cut Depth (A) 1-1/16
Radius (R) 3/4
Cutting Height (B) 5/8
Shank (d) 1/2
Overall Length (L) 2-1/2
B1 5/16
Replacement Bearing 47706
Flutes 2

1 in stock (can be backordered)

Compare

Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 20,000.

Additional information

Weight 0.5 lbs
Dimensions 8 × 7 × 3 in
