Manufacturer of 'Quality Urethane Band Saw Tires'

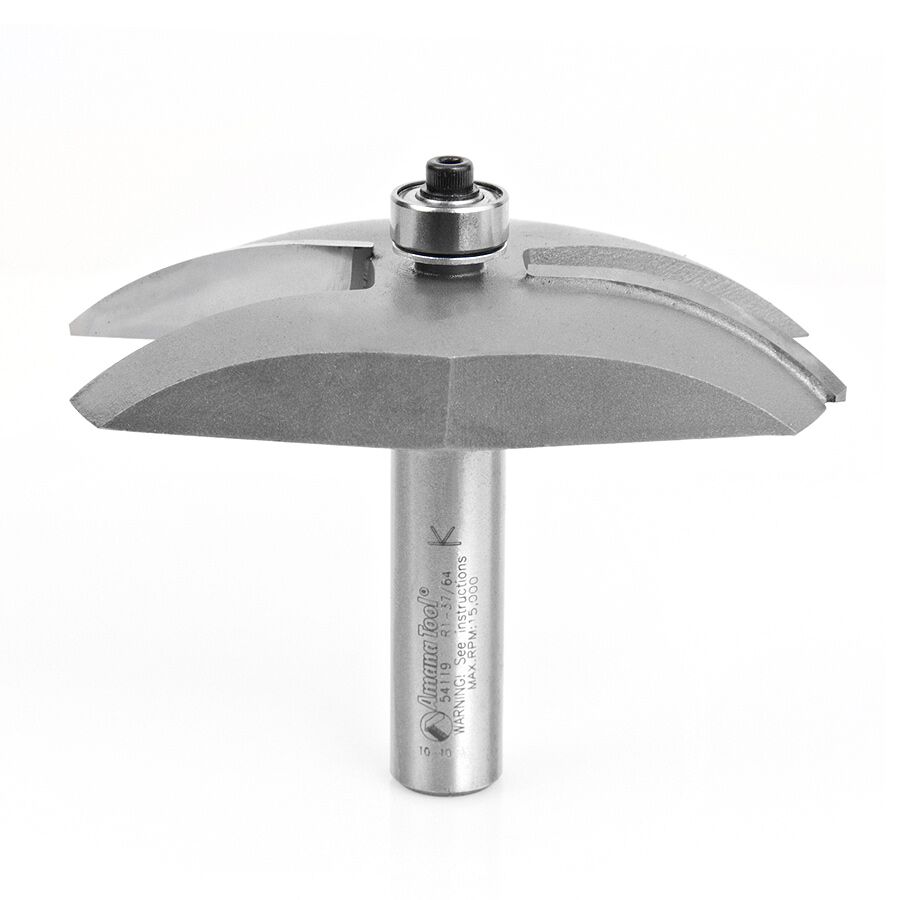

Amana Tool 54119 Carbide Tipped Cove Raised Panel 1-9/16 Radius x 3-3/8 Dia x 1/2 x 1/2 Inch Shank

$160.90

COVE RAISED PANEL 1/2 SHANK
Specification
Diameter (D) 3-3/8
Cut Depth (A) 1-7/16
Radius (R) 1-9/16
Cutting Height (B) 1/2
Shank (d) 1/2
Overall Length (L) 2-3/8
Replacement Bearing 47706
Max RPM 14,000
Flutes 2

1 in stock (can be backordered)

Compare

Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended.

Additional information

Weight 0.5 lbs
Dimensions 8 × 7 × 3 in
