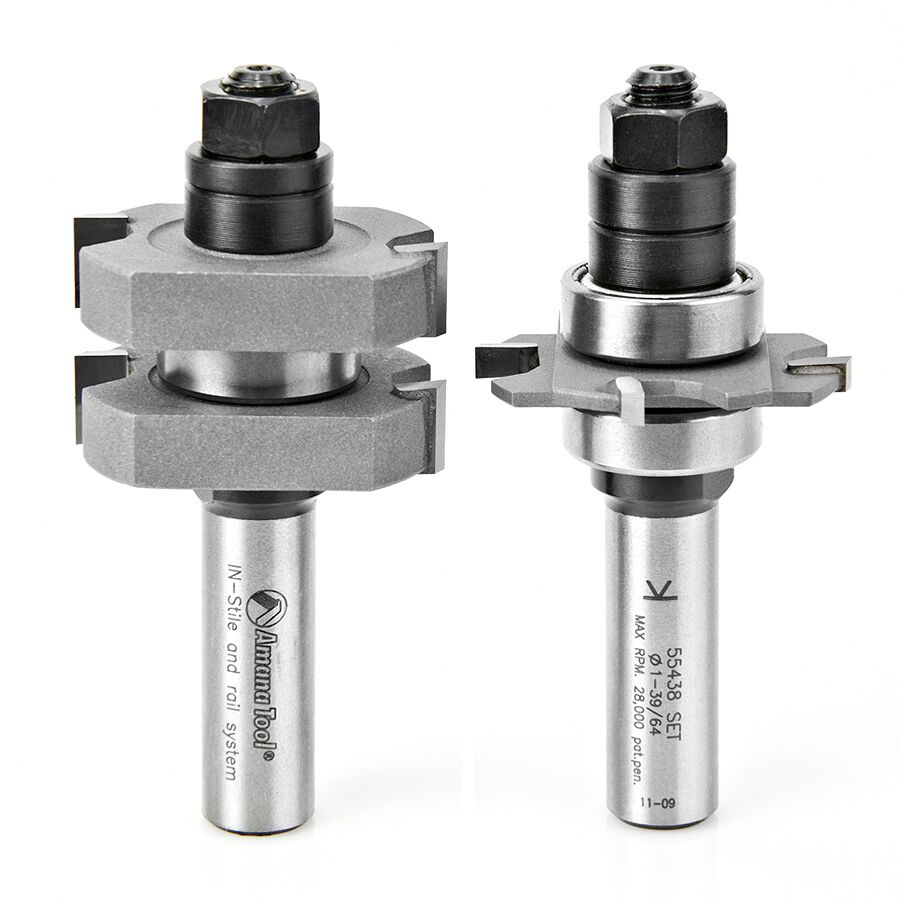

Amana Tool 55438 Carbide Tipped Adjustable Mission Style Straight Instile and Rail System 1-5/8 Dia x 5/8 to 1-1/8 x 1/2 Inch Shank Set
$206.91
IN-STILE/RAIL STRAIGHT PLYWOOD
Specification
Diameter (D) 1-5/8
Cutting Height (B) 5/8 to 1-1/8
Shank (d) 1/2
Overall Length (L) 3-11/32
Type Mission (Straight)
Flutes 2
C 3/8
B1 for 1/4″ Plywood 3/16 to 9/32
B1 for 1/2″ Plywood 7/16 to 17/32
2 in stock
Description
Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2″ shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
Additional information
Shank Size | 1/2" |
---|---|
Bit Profile | Instile & Rail |
