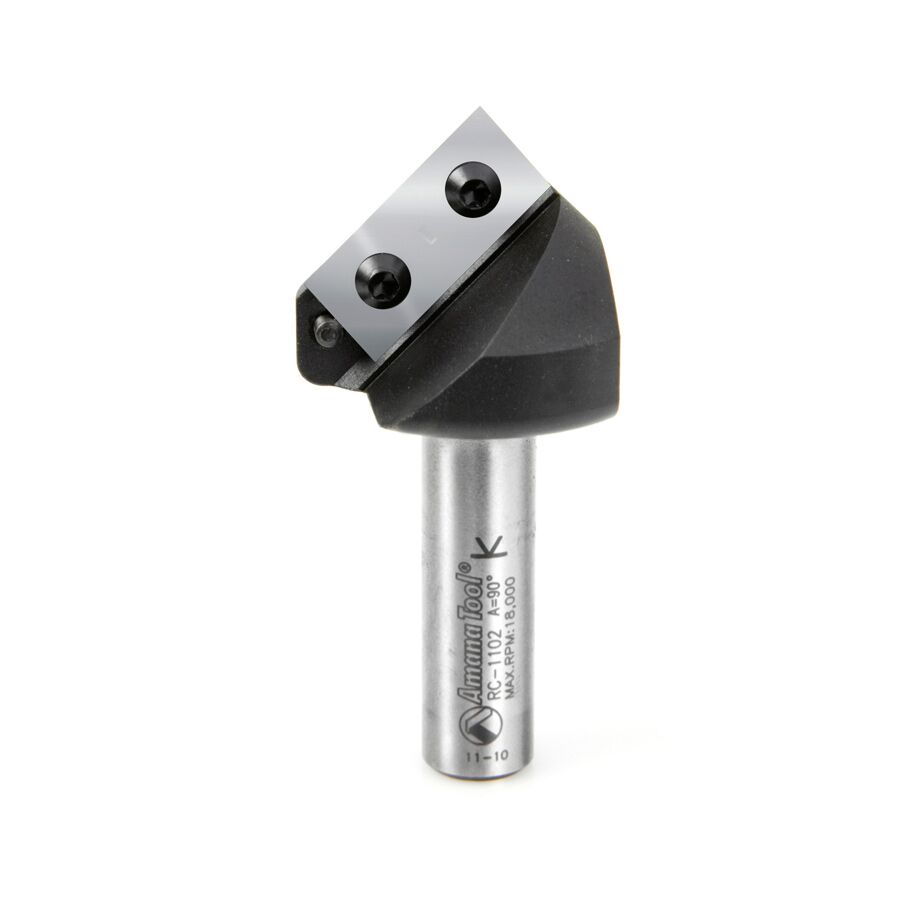

Amana Tool RC-1102 Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC

$121.65

V GROOVE INSERT 90° 1/2 SHANK
Specification
(D) Diameter 1-1/2
(a°) Angle 90°
(B) Cutting Height 3/4
(d) Shank 1/2
Overall Length (L) 3
a1° 45°
B1 1-1/16
Cutting Edges 2
Max RPM 18,000
L1 1-25/32
Flutes 1
# of knives 1

Available on backorder

Compare

Description

The innovative CNC tool design uses the highest grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including:

Miter folds – “create the perfect joint”
Signmaking and lettering
Excellent for cutting:

Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber
(Engraving Only)
Composites
Composite Decking
Foam
High Density Polyethylene (HDPE)
Laminate
Melamine
MDF/HDF
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board*
20lbs High Density Urethane
*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.

Advantages of Insert Tooling:

Long lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Knives can be re-sharpened multiple times without affecting the original profile
Cost effective solution compared to replacing brazed router bits
Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.

Additional information

Weight 0.5 lbs
Dimensions 8 × 7 × 3 in
