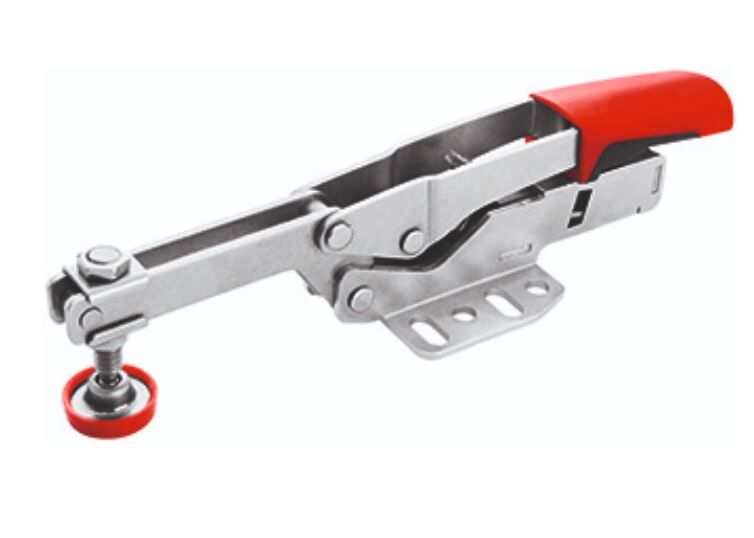

Clamping Capacity 1-9/16″
Automatic Adjust 1-3/8″
Nominal Clamping (Force Range) 25 – 550 lbs.*
Holding Capacity 700 lbs.
Approx. Weight 0.81 lbs.
Fastener 1/4″ or M6
* Variable and dependent on spindle settings, pressure screw setting, force applied etc. Some small spindle
adjustments may be required to achieve maximum clamping opening. Note: All clamping force values in this catalog
are approximate as applied force can vary based on spindle settings, pressure screw settings, force applied etc
