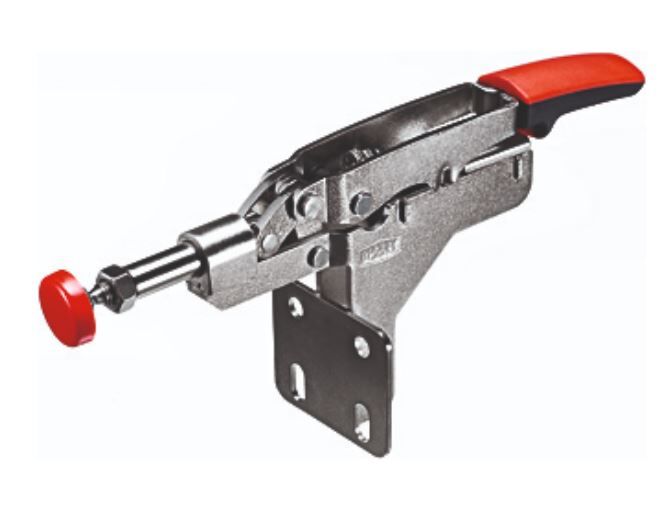

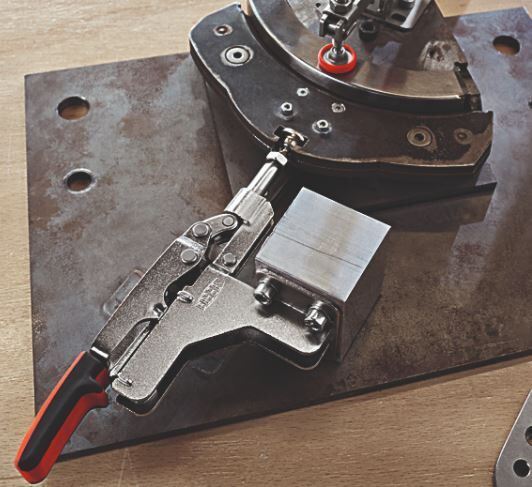

Bessey Auto adjust toggle clamp, horizontal push pull, vertical flanged base STC-IHA15

Description

Inline toggle with angled base plate
Clamping Capacity 3/8″
Automatic Adjust 5/16″
Nominal Clamping (Force Range) 25 – 250 lbs.*
Holding Capacity 450 lbs.
Approx. Weight 0.48 lbs.
Fastener   3/16″ or M5

3101627 STC-IHA15 Spindle service part set

* Variable and dependent on spindle settings, pressure screw setting, force applied etc.
Some small spindle adjustments may be required to achieve maximum clamping opening.
Note: All clamping force values in this catalog are approximate as applied force can vary
based on spindle settings, pressure screw settings, force applied etc
