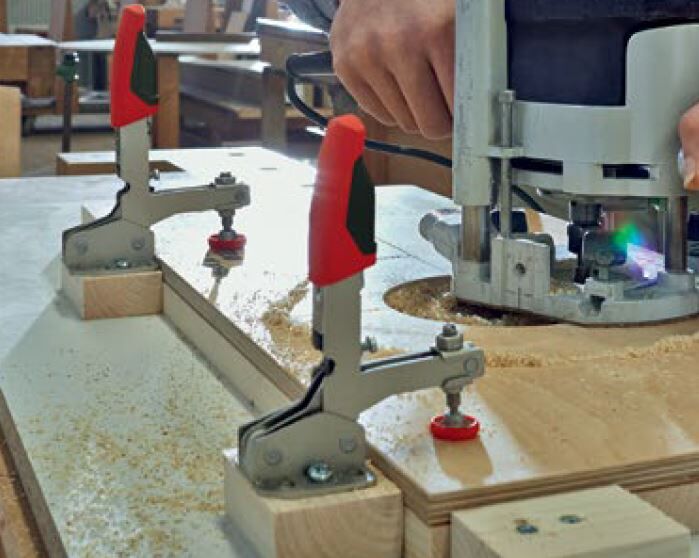

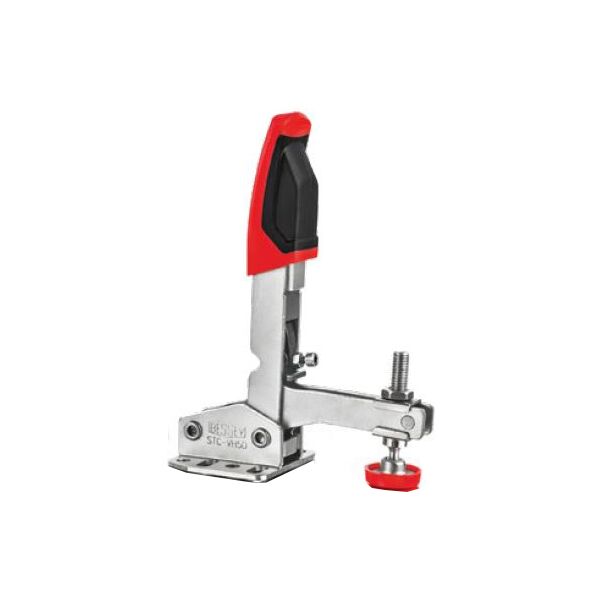

Bessey Auto adjust toggle clamp, vertical, flanged base STC-VH50

Description

Clamping Capacity  1-9/16″
Automatic Adjust  1-3/8″
Nominal Clamping (Force Range) 25 – 550 lbs.*
Holding Capacity 700 lbs.
Approx. Weight 0.94 lbs
Fastener 1/4″ or M6

* Variable and dependent on spindle settings, pressure screw setting, force applied etc.
Some small spindle adjustments may be required to achieve maximum clamping opening.
Note: All clamping force values in this catalog are approximate as applied force can vary
based on spindle settings, pressure screw settings, force applied etc
