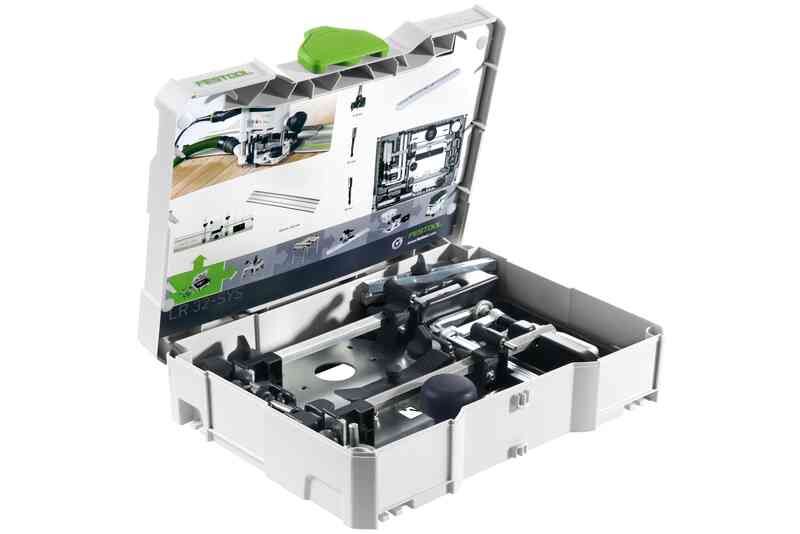

FESTOOL Hole Drilling LR 32-SYS 584100 – DISCONTINUED

Description

With the LR 32 Hole Drilling System from FESTOOL, you can precisely and efficiently build cabinets using the European frameless 32 mm system. Invaluable for placing cup hinges (35mm) or setting shelf pin holes (based on 32mm spacing) in casework, this portable line boring system allows you do in the field what has traditionally been a shop-only job, possible only with large stationary equipment. For use with the FESTOOL OF 1010 and OF 1400 routers and guide rail system, the LR 32 System is supported by a 42in, 55in and a 95in rail (sold separately), to cover any size job. Includes: Guide plate, Centering mandrel, 2 edge stops, 2 linear stops, 2 clamps, Operating wrench, 35 mm carbide-tipped European hinge boring bit, 2 carbide-tipped 5 mm shelf pin bits (one for through holes and one for stopped pin holes).

Precisely and efficiently build cabinets using the European frameless 32 mm system
For placing cup hinges (35mm) or setting shelf pin holes in casework
Portable line boring system allows you do in the field what has traditionally been a shop-only job
For use with FESTOOL OF 1010 router and guide rail system, the LR 32 System is supported by a 42in, 55in and a 95in rail (sold separately)
For use with hole line guide rails

Includes:
guide plate
centering mandrel
hinge location cutter HM dia. 1-3/8″ (35 mm)
dowel drill HW dia. 7/32″ (5 mm) V-shaped tip
dowel drill HM dia. 3/16″ (5 mm) with centring bit and pre-cutter
2 parallel side fences with adjustable stop
Screw Clamp, 4-11/16″
2x longitudinal stop
screwdriver, WAF 5
in SYSTAINER SYS 1 T-LOC
