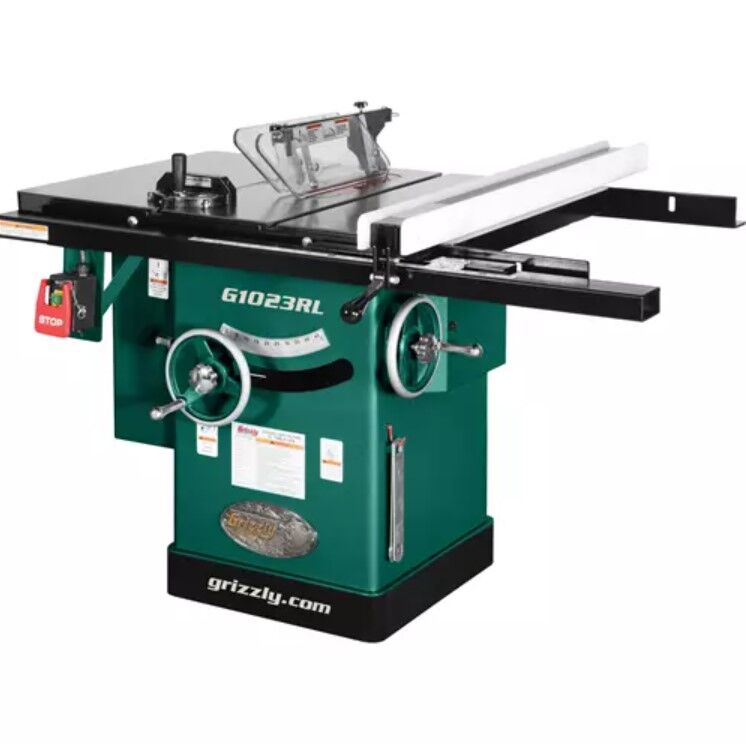

G1023RL 10″ 3 HP 240V Cabinet Table Saw

This professional-grade table saw will be the centerpiece of your shop.

The G1023RL 10″ 240V Cabinet Table Saw has been improved, refined, and optimized into this finished product.

The powerful 3 HP motor rotates the arbor at 4200 RPM. This equates to the 10″ x 40T having a rim speed of 11,000 FPM and is ready to rip and cut all day long.

A poly-V serpentine belt system transfers power more efficiently and with less noise than standard V-belts.

The precision-ground, cast-iron table has T-slots so your miter gauge will not fall off the table when retracted.

The G1023RL manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your saw.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the table saw may available online and shipped from the Grizzly parts warehouse in Springfield, MO.

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 240V, single-phase, 14A
• Rip capacity: 32″ right, 14″ left of blade
• Max. depth of cut @ 90°: 3″
• Max. depth of cut @ 45°: 2-1/8″
• Table size with extension: 40″ W x 27″ D
• Distance from front of table to center of blade: 17″
• Floor-to-table height: 34″
• Arbor diameter: 5/8″
• Arbor speed: 4200 RPM
• Max. width of dado: 13/16″
• Footprint: 20-1/2″ x 20-1/2″
• Overall dimensions: 66″ W x 47″ D x 39-3/4″ H
• Approximate shipping weight: 508 lbs.

FEATURES:

• Solid cast-iron table is heat-treated for strength, milled perfectly flat and ground to a mirror-like finish
• Extra-large handwheels ease arbor movement
• Locking magnetic switch includes padlock and key to prevent unauthorized use
• Accepts dado blades up to 13/16″ with 5/8″ diameter arbor
• Large safety STOP paddle
• One-piece steel cabinet type stand
• Quick changing between riving knife and splitter guard
• 4″ dust port
• 1-year limited warranty
