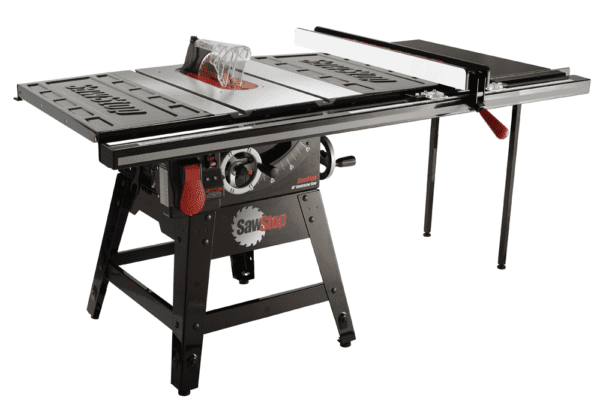

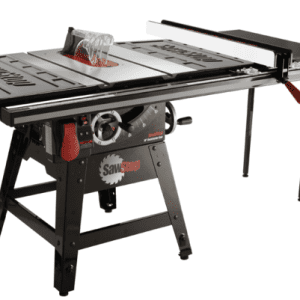

SAWSTOP Contractor 1.75HP, 120V, 60Hz 36″ Pro T-Glide Fence System CNS175-TGP36

Description

Contractor 1.75HP, 120V, 60Hz 36″ Pro T-Glide Fence System

Motor: (all 60Hz, TEFC):1.75 HP
Motor: (all 60Hz, 240V):1.75 HP
Saw body footprint:25 3/4″ W x 27″ D
Cast iron table:20″ W x 27″ D
Cast iron table (w/ extension wings):44″ W x 27″ D (w/opt. cast iron wings)
Extension wings:12″ W x 27″ D each
Extension table 30 in:N/A
Extension table 36 in:23 3/4″ W x 27″ D
Shipping dimensions (saw body only):35″ W x 30″ D x 20″ H
Weights – table saw only:225 lbs
Weights – w/ 36 in fence systems:310 lbs
Blade:40-tooth, prof. grade, 5/8″ arbor
Blade diameter:10″
Blade tilt:Left
Blade kerf:0.118″ (3mm)
Blade plate thickness:0.078″ (2mm)
Max. depth of cut, blade at 0º:3 1/8″
Max. depth of cut, blade at 45º:2 1/4″
Max. rip, right of blade – 36 in:36 1/2″ (w/ 36″ rails)
Max. rip, left of blade:16 1/2″ (w/ 30″ Std. Fence)
Max. rip, left of blade (options):12 1/2″ (w/ T-Glide Fence)
Dado diameter:8″ (req. dado brake + insert)
Dado max. width:13/16″
Arbor diameter at blade:5/8″
Main bearing size:62mm OD x 30mm ID
Second bearing size:52mm OD x 25mm ID
Table in front of blade (max. elevation):10 5/8″
Table behind blade (max. elevation):7 1/8″
Arbor Runout:0.001″ Maximum allowable runout
Table flatness measured diagonally:0.016″ Maximum gap
Blade alignment with miter slot:0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual:±0.25º
Alignment between splitter and blade:0.010″ Maximum difference
Miter slots T-shaped:3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center:11 1/8″ center-to-center
Miter slots info:5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter:4″ under table top
Riving knife / splitter thickness:0.090″ (2.3 mm)
Micro blade guard (standard on 1.75 HP saws):polycarbonate, extends 1″ right of blade
Dust collection blade guard (standard on 3 HP saws)(optional on 1.75 HP saws):polycarbonate, extends 1-3/16″ right of blade
Blade guard (dust collection) port diameter:1-1/2″ Outside, 1-1/4″ Inside
Insert:zero clearance, phenolic core, melamine surfaces
Hand wheels:6″ diameter, cast alum. w/ ABS handle
Belts:V-ribbed belt – static dissipative
Overall saw dimensions:44″ W x 39 1/4″ D x 34 3/4″ H (body only)
Overall saw dimensions 30 in:58 1/2″ W x 40″ D x 34 3/4″ H
Overall saw dimensions 36 in:69 1/8″ W x 45″ D x 34 3/4″ H
Overall saw dimensions 52 in:85 1/4″ W x 45″ D x 34 3/4″ H
