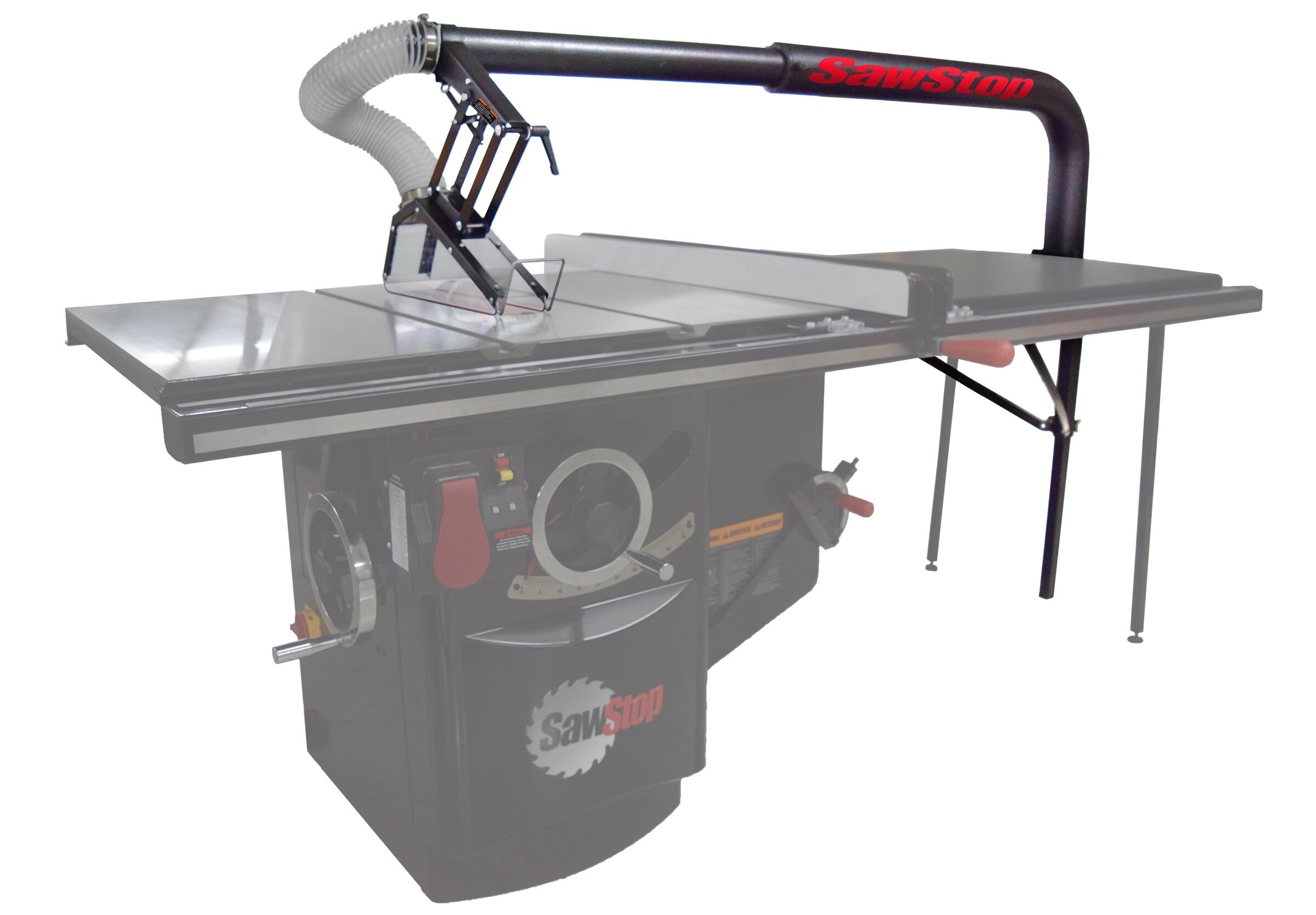

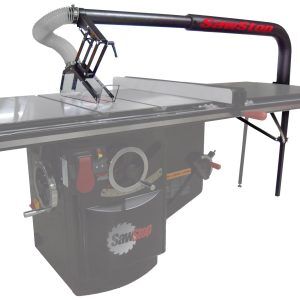

SAWSTOP Floating Overarm Dust Collection Guard TSG-FDC

Description

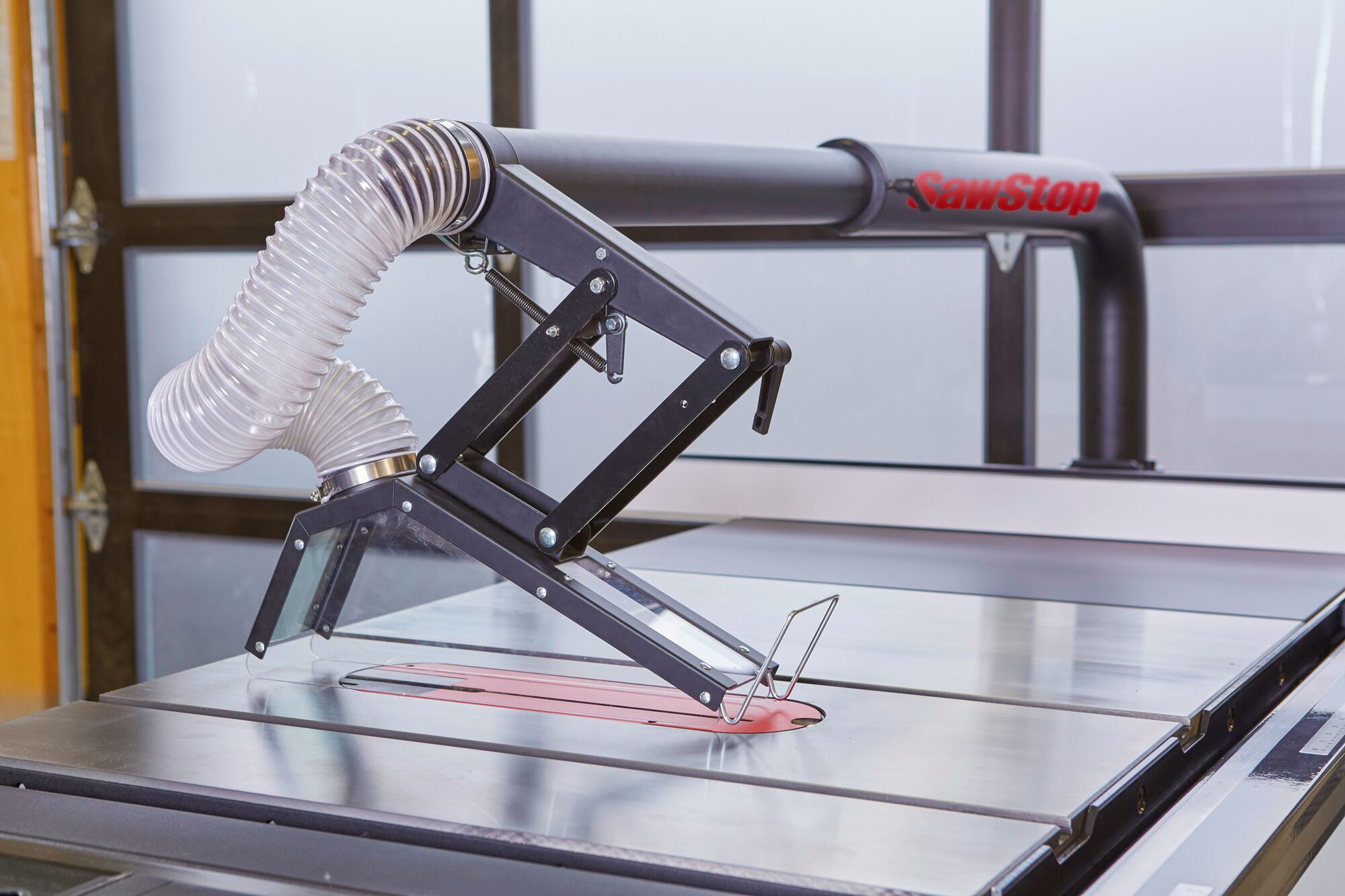

This heavy-duty 4” overarm is designed to provide operator protection while removing table-top dust in both standard and non-through cuts. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position.

The wide pipe allows for high air volume collection.

Compatible with most ICS, PCS & CNS configurations.

Net Weight: 58 lbs
Blade Guard Dimensions: 3 1/2” x 18 1/2”
Distance Between Blade and End of Extension Table: 35 3/4” to 68”
Inner Dust Tube Diameter: 3”
Outer Dust Tube Diameter: 4”
Outer Dust Tube Height Above Table: 13 1/2”
Outer Dust Tube Height Above Floor: 33 1/2” to 50”
