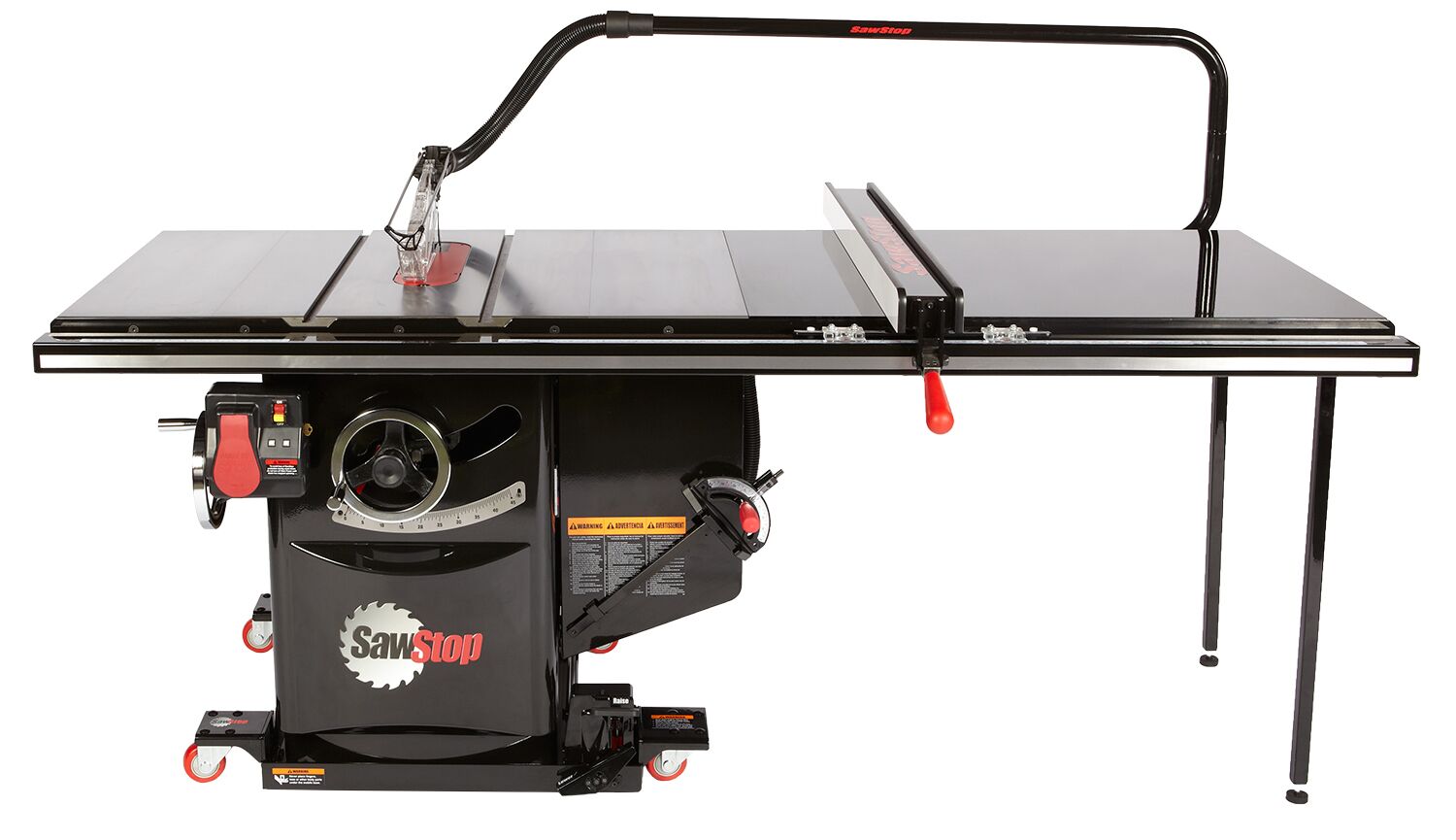

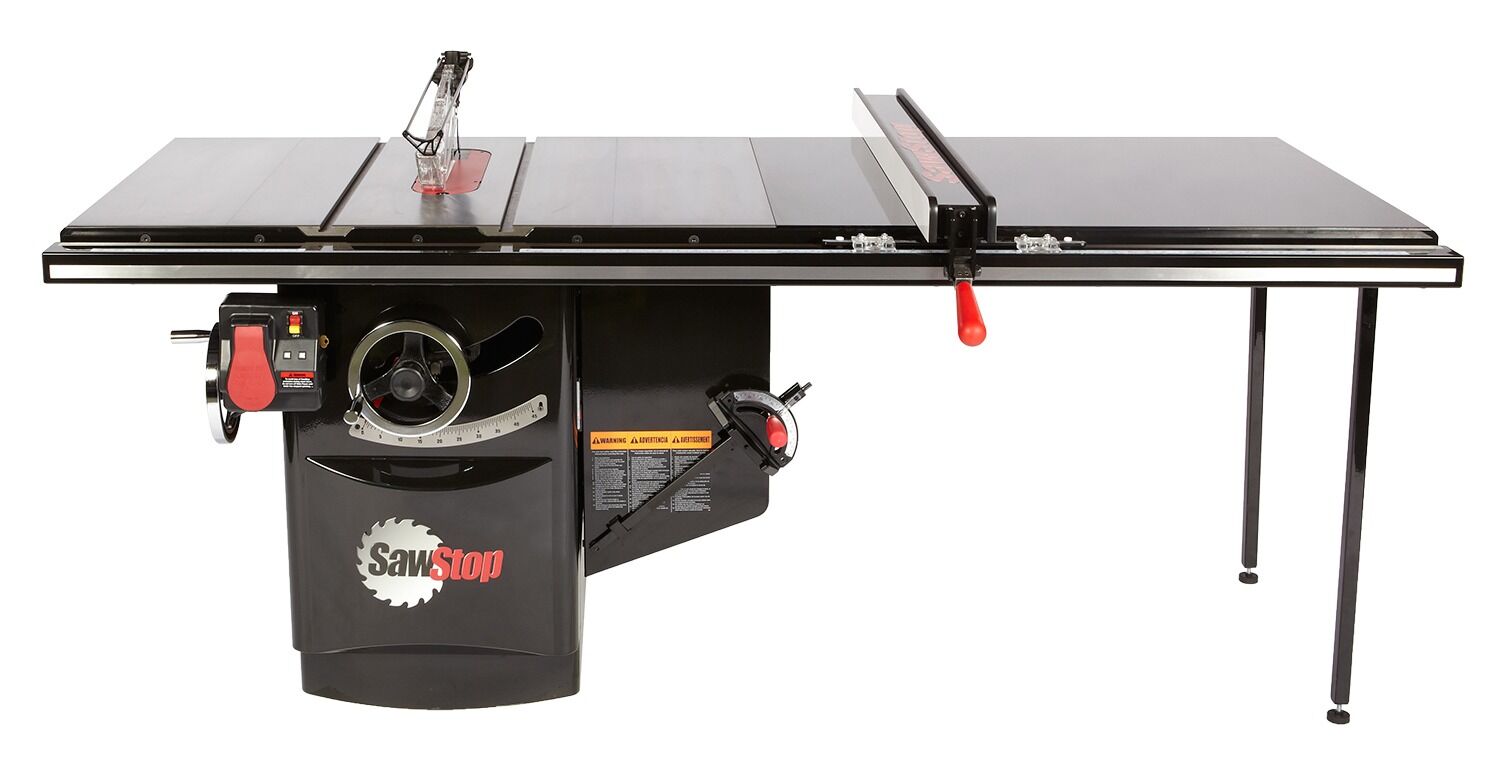

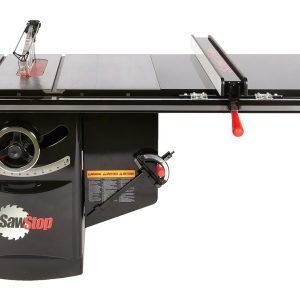

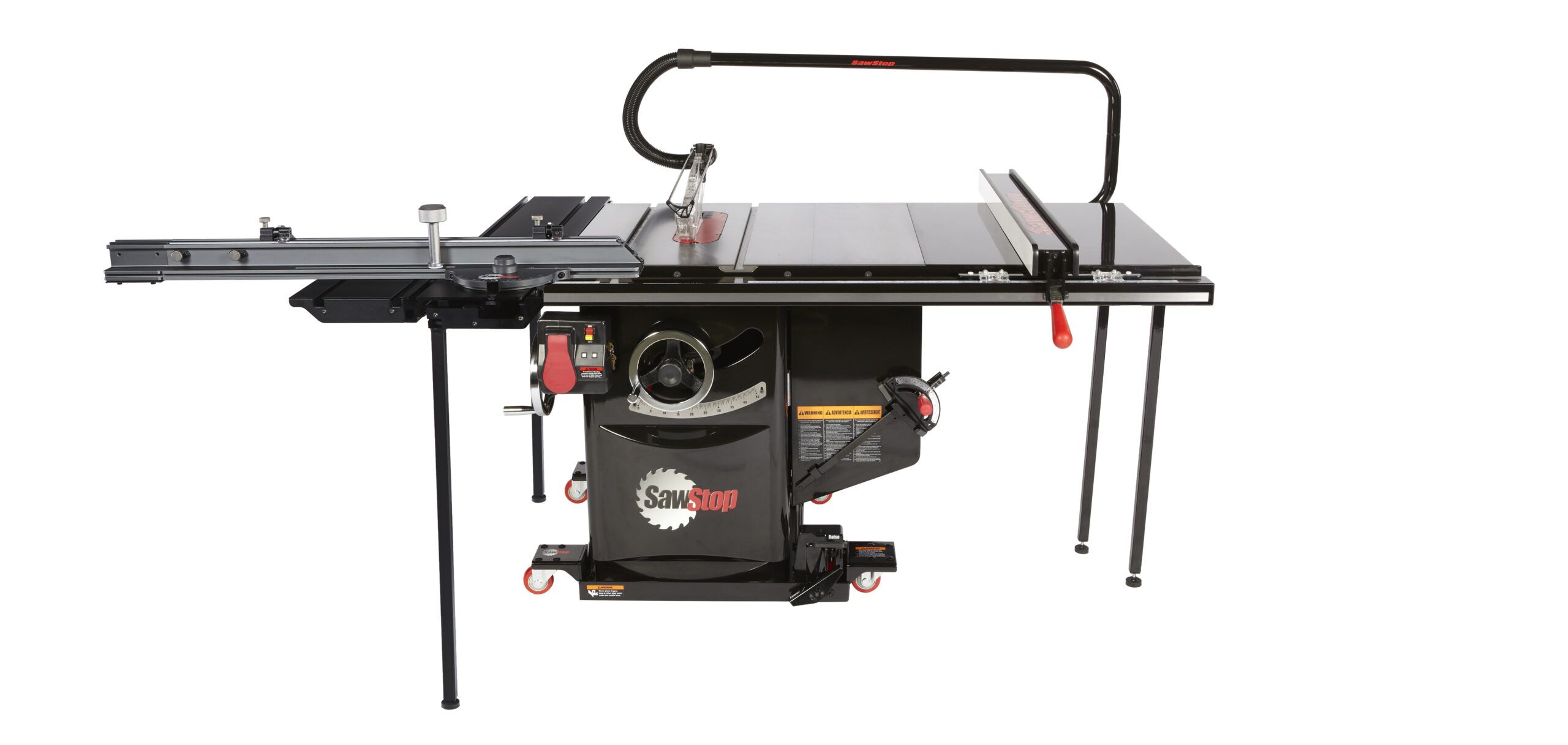

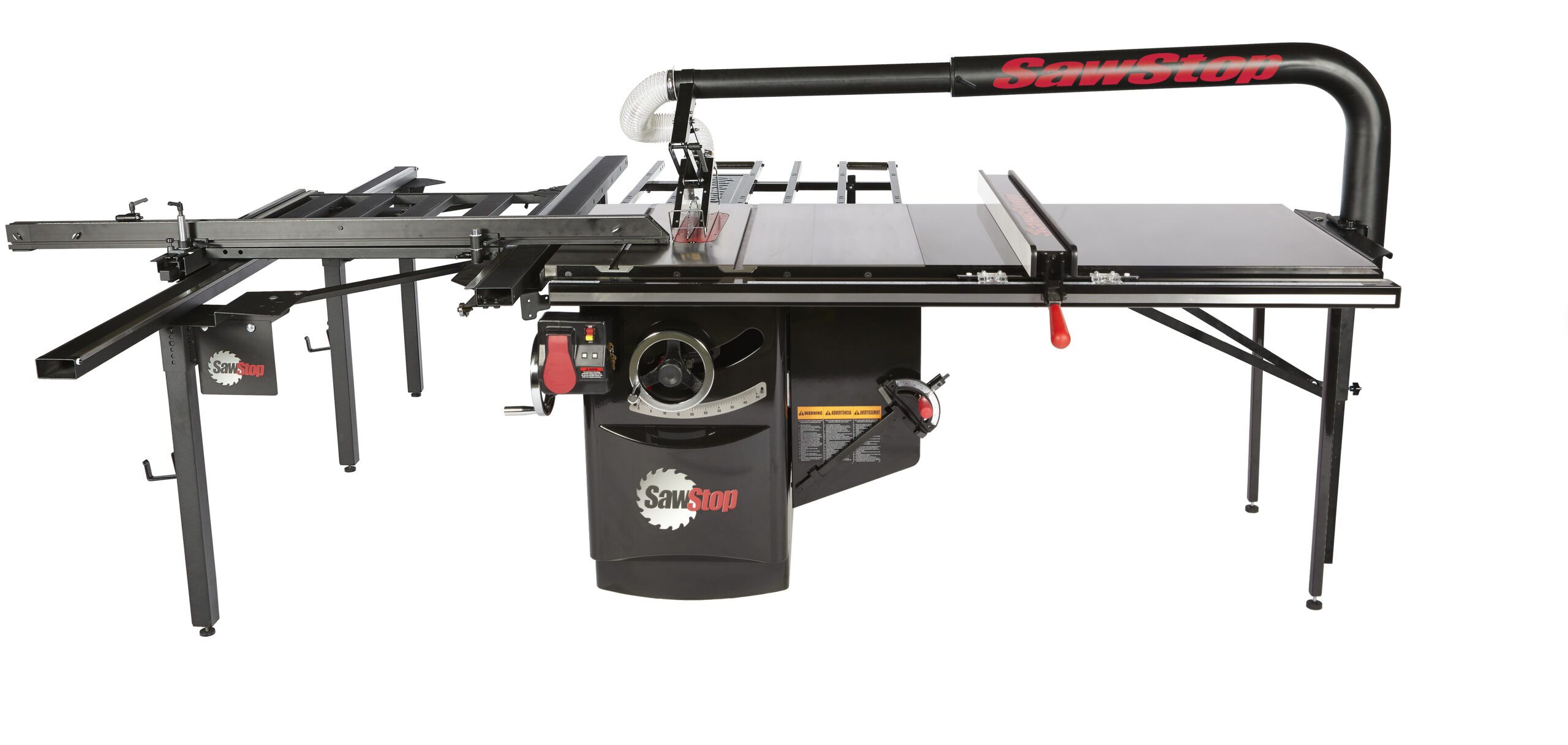

SAWSTOP Industrial 5HP, 1ph, 230V 60Hz 52″ Ind T-Glide Fence System ICS51230-52

Description

Motor: (all 60Hz, TEFC):3, 5 & 7.5 HP available
Cabinet footprint:20″ W x 25″ D
Cast iron table:24″ W x 30″ D
Cast iron table (w/ extension wings):44″ W x 30″ D
Extension wings:10″ W x 30″ D each
Extension table 36 in:24″ W x 30″ D
Extension table 52 in:40″ W x 30″ D
Shipping dimensions (saw body only):40″ W x 40″ D x 40″ H
Weights – table saw only:530 lbs
Weights – w/ 36 in fence systems:635 lbs
Weights – w/ 52 in fence systems:685 lbs
Shipping weight (approx.):640 lbs (table saw only)
Blade:Prof. grade, 5/8″ arbor
Blade diameter:10″
Blade tilt:Left
Blade kerf:0.118″ (3mm)
Blade plate thickness:0.078″ (2mm)
Max. depth of cut, blade at 0º:3 1/8″
Max. depth of cut, blade at 45º:2 1/4″
Max. rip, right of blade – 36 in:36 1/2″ (w/ optional 36″ rails)
Max. rip, right of blade – 52 in:52 1/2″ (w/ optional 52″ rails)
Max. rip, left of blade:12 1/2″
Dado diameter:8″ (requires a separate brake cartridge and insert)
Dado max. width:13/16″
Arbor diameter at blade:5/8″
Main bearing size:62mm OD x 30mm ID
Second bearing size:52mm OD x 25mm ID
Table in front of blade (max. elevation):10 3/4″
Table behind blade (max. elevation):10″
Arbor Runout:0.001″ Maximum allowable runout
Table flatness measured diagonally:0.010″ Maximum gap
Blade alignment with miter slot:0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual:±0.25º
Alignment between splitter and blade:0.010″ Maximum difference
Miter slots T-shaped:3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center:11 1/8″ center-to-center
Miter slots info:5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter:4″
Riving knife / splitter thickness:0.090″ (2.3 mm)
Dust collection blade guard (standard on 3 HP saws)(optional on 1.75 HP saws):polycarbonate, extends only 1-3/16″ to right of blade
Blade guard (dust collection) port diameter:1-1/2″ Outside, 1-1/4″ Inside
Insert:zero clearance, phenolic core, melamine surfaces
Hand wheels:8″ diameter, cast iron w/ chrome handle
Belts:2 V-ribbed belts
Overall saw dimensions:44″ W x 34″ D x 34″ H
Overall saw dimensions 36 in:69 1/4″ W x 36 1/2″ D x 34″ H
Overall saw dimensions 52 in:85 1/4″ W x 36 1/2″ D x 34″ H
Motor configuration 1:ICS31230: 3 HP, 1 phase, 230v, 13 A
Motor configuration 2:ICS51230: 5 HP, 1 phase, 230v, 19.7 A
Motor configuration 3:ICS53230: 5 HP, 3 phase, 230v, 12 A
Motor configuration 4:ICS53480: 5 HP, 3 phase, 480v, 5.8 A
Motor configuration 5:ICS73230:7.5 HP, 3 phase, 230v, 17.8 A
Motor configuration 6:ICS73480: 7.5 HP, 3 phase, 480v, 9 A
