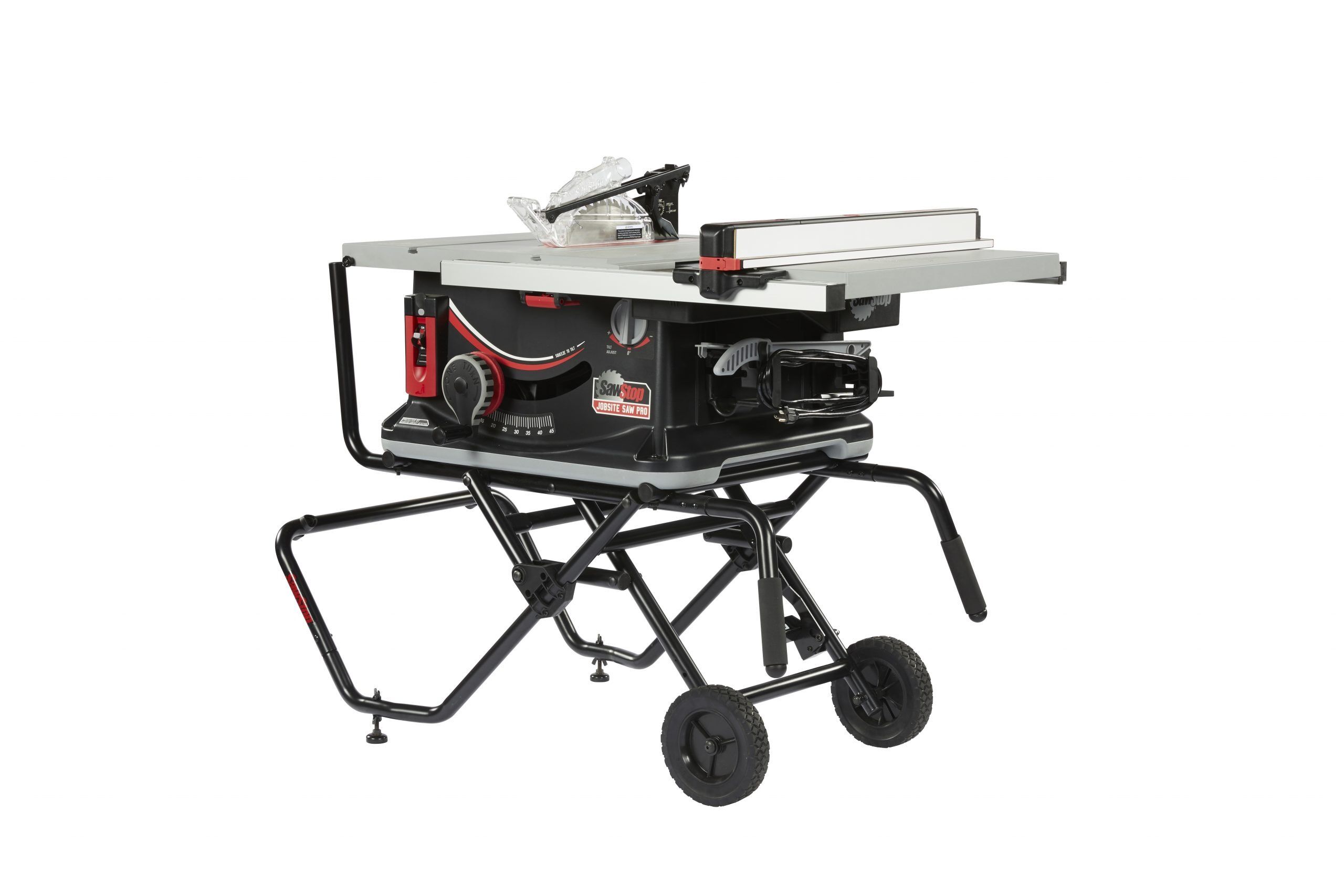

SAWSTOP Jobsite Saw PRO 1.5HP, 120V, 60Hz Inc. Cart & Dust Guard JSS-120A60

Description

Model Option:10″ Jobsite Saw PRO: 1.5HP (4.0HP MAX), 120VAC, 60Hz. Inc. jobsite mobile cart & high/low fence system
Motor Configuration:120 VAC 60 Hz, Universal
Amperage:15A
Motor Peak HP4 HP
Motor Continuous HP1.5 HP
No Load RPM:4,000
Restart ProtectionYes
Cord Length:116″
Saw Dimensions without Cart:31-3/4″ W x 28-3/4″ D x 15-1/2″ H

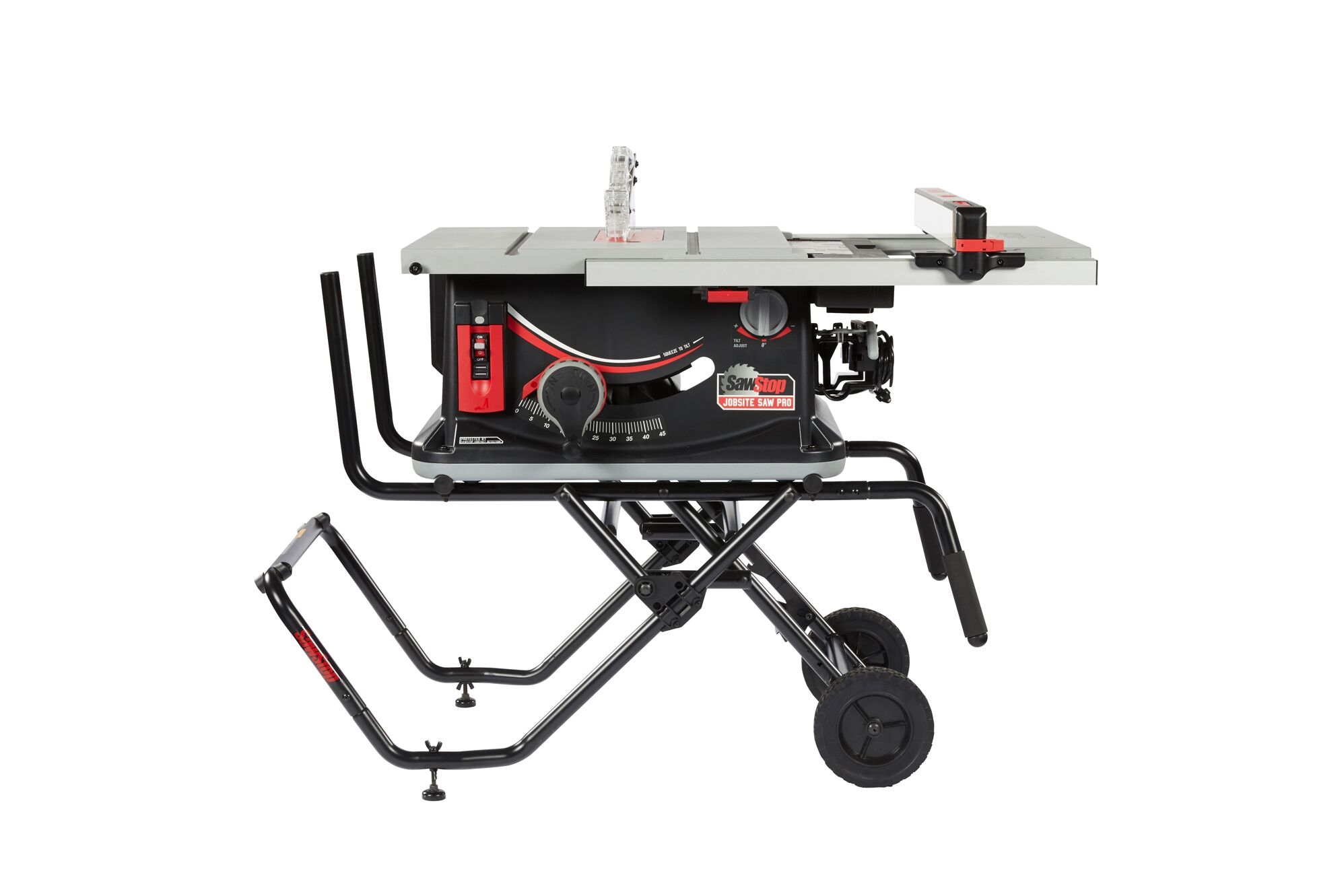

Saw Dimensions with Open Cart:48″ W x 29″ D x 36″ H

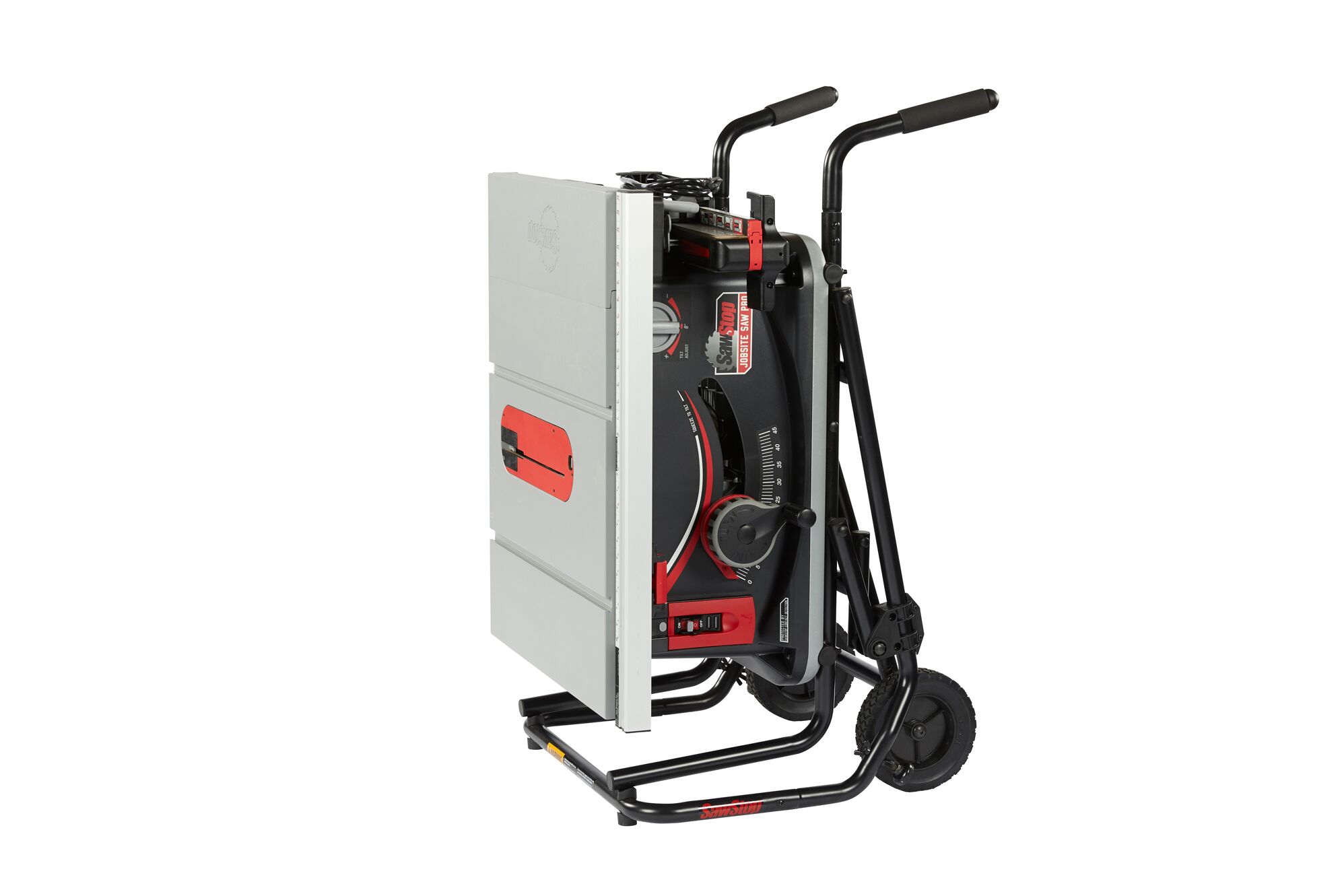

Saw Dimensions with Closed Cart (on End):26-1/2″ W x 29″ D x 45″ H
Table Dimensions (Retracted):31-1/4″ W x 24-5/8″ D
Table Dimensions (Extended):43-3/8″ W x 24-5/8″ D
Shipping Dimensions:32″ W x 43″ D x 26″ H
Weight (Saw Only):84 lbs
Weight (with Cart):113 lbs
Shipping Weight (with Cart):137 lbs
Blade Diameter:10″
Dado Diameter:8″
Dado Max. Width:13/16″
Bevel Angle Range:-1 to 46
Blade Tilt:Left
Max. Depth of Cut, Blade at 0º:3-1/8″
Max. Depth of Cut, Blade at 45º:2-1/8″
Max. Rip Right of Blade (Extended):25-1/2″
Max. Rip Left of Blade:9-3/4″
Arbor Diameter at Blade:5/8″
Main Bearing Size:62mm OD x 30mm ID x 16mm W
Second Bearing Size:52mm OD x 25mm ID x 15mm W
Table in Front of Blade (Max Elev):7-7/8″
Table Behind Blade (Max Elev):7-3/8″
Miter Slots T-shaped Dimensions:.754″ W x .413″ D; “T” .956″ W x .157″ THK
Dust Collection Port Diameter:2-9/16″ Outside, 2-1/4″ Inside
Riving Knife/Splitter Thickness:2.3mm (.090″)

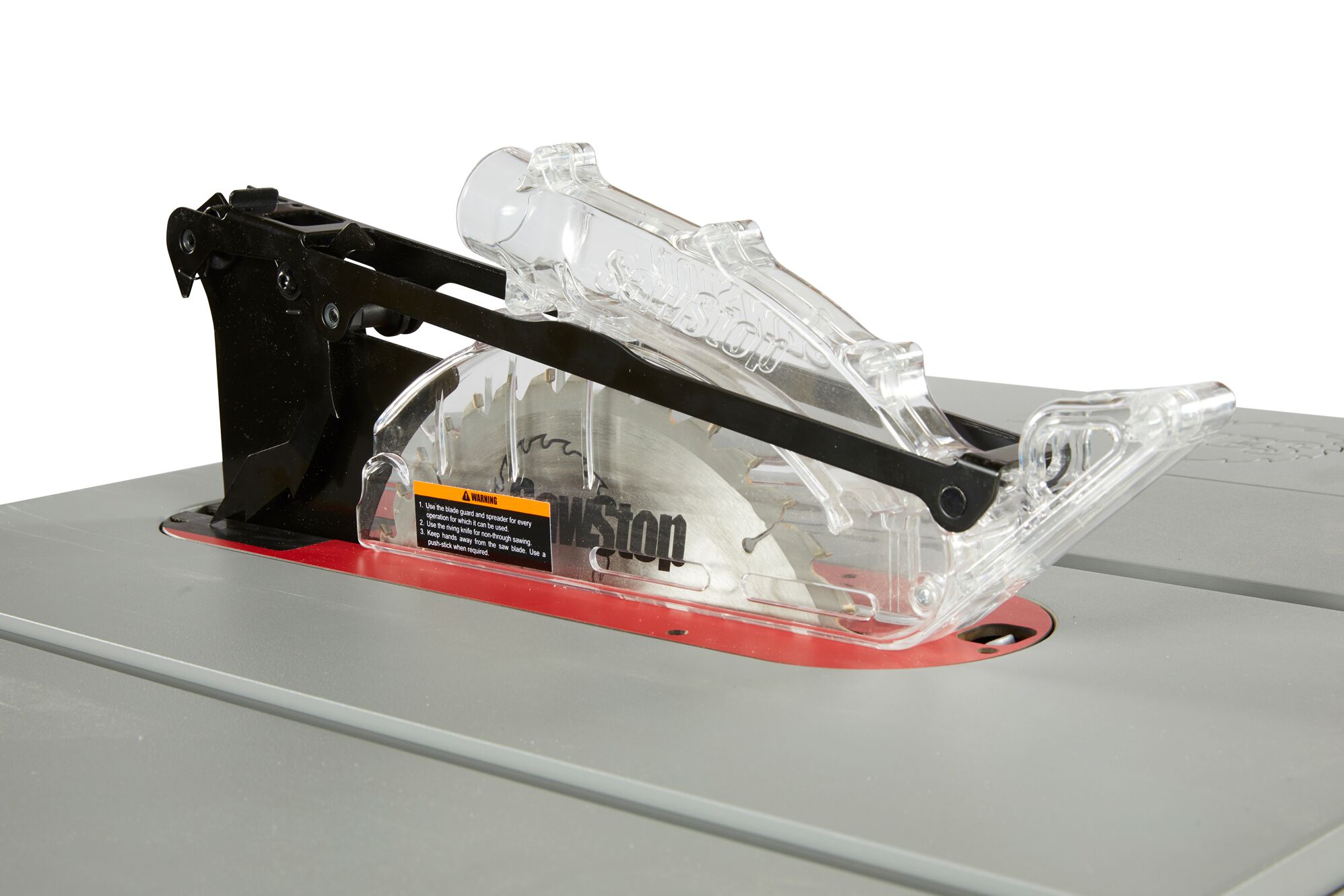

Active Dust Collection Blade Guard:polycarbonate, extends 1″ right of blade
Blade Guard (Dust Collection) Port Diameter:1-11/16″ Outside, 1-3/8″ Inside
Hand Wheel:Effective diameter 6.3″
Belts:Poly-V static dissipative belt
Table Flatness Measured Diagonally:0.033″ Inches
