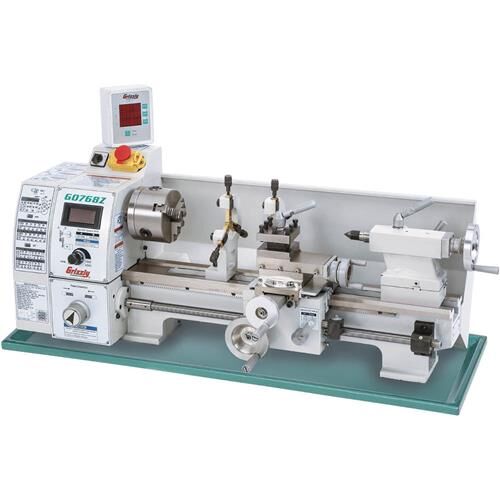

Grizzly G0768Z – 8″ x 16″ Variable-Speed Lathe with DRO

$1,624.00

Compare
SKU: GRZ:G0768Z Categories: , Tags: , , , ,

Description

Overview
This 8″ x 16″ Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand. Features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads, and a great selection of included standard equipment.
Made in an ISO 9001 Factory

Specifications:

Swing over: bed 8-1/4″, cross slide 4-5/8″
Distance between centers: 15-3/4″
Spindle: bore 0.787″ (20mm), taper MT#3
Motor: 600W (3/4 HP), 110V, DC, 10A
Spindle speed ranges: Low 50-1000, High 100-2000 RPM
Travel: compound rest 2-1/8″, cross slide 3″
Tailstock: quill travel 2″, taper MT#2
Feed speeds: (3) 0.0037″-0.0071″/rev
Inch threads: (15) 9-44 TPI
Metric threads: (12) 0.4-3.0mm
Cuts LH threads
Footprint: 31-1/2″ x 10-1/2″
Overall size: 36″ W x 16″ D x 14″ H
Approx. shipping weight: 166 lbs.
Standard Equipment:

4″ 3-Jaw and 4-jaw chucks
6-3/4″ Faceplate
Steady rest & follow rest
4-Way turret tool post (3/8″ max tool size)
MT#2 & MT#3 dead centers

Additional information

Weight 192 lbs
Dimensions 19 × 37 × 19 in
