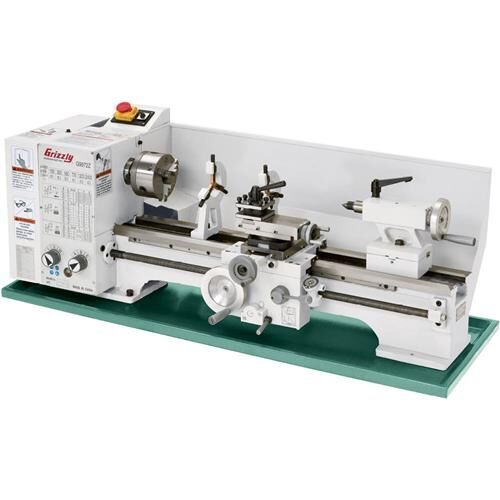

Grizzly G9972Z – 11″ x 26″ Bench Lathe w/ Gearbox

$1,964.00

Compare
SKU: GRZ:G9972Z Categories: , Tags: , , , ,

Description

Overview
This is another great starter metal lathe with more capacity than typical benchtop lathes! This specially designed machine is an outstanding value and able to take on light duty jobs requiring a 10-1/2″ swing, a 1″ spindle bore and 26″ between centers. And with a 1 HP motor, you’ll be able to make quick work of even the most challenging jobs. This is an awesome value and a lot of lathe for a hobby machinist! Feeds and threads to the left only.
Standard Equipment:

5″ 3-jaw chuck with two sets of jaws
6-1/2″ 4-jaw chuck with reversible jaws
Steady rest
Follow rest
MT #3 & MT #4 Dead centers
4-way tool post
Faceplate
Tool box & tool kit
Change gears
Specifications:

Swing over bed: 10-1/2″
Swing over cross slide: 6-3/8″
Distance between centers: 26″
Spindle bore: 25mm
Spindle nose taper: MT #4
Motor: 1 HP, 110V, single-phase
Number of speeds: 6
Range of speeds: 150, 300, 560, 720, 1200, 2400 RPM
Lead screw: 3/4″ x 8 TPI
Compound travel: 3-1/2″
Cross slide travel: 7″
Carriage travel: 23″
Maximum tool size: 1/2″ x 1/2″
Tailstock barrel travel: 2-1/2″
Tailstock barrel taper: MT #3
Spindle thread: 1-3/4″ x 8 TPI
Number of longitudinal feeds: 12
Range of longitudinal feeds: 0.0022–0.0150 IPR
Number of inch threads: 24 Range of inch threads: 8–56 TPI
Number of metric threads: 10
Range of metric threads: 0.5–3.0mm
Overall dimensions: 23″ W x 51″ L x 19″ H
Approximate shipping weight: 559 lbs.
Comes with chip tray and splash guard!

Additional information

Weight 560 lbs
Dimensions 60 × 20 × 36 in
