MAKSIWA SLIDING PANEL SAW DIAMOND 3 PHASE. 10HP 220V BMD.3200.IR
$19,899.00
Description
BMD.3200.IR

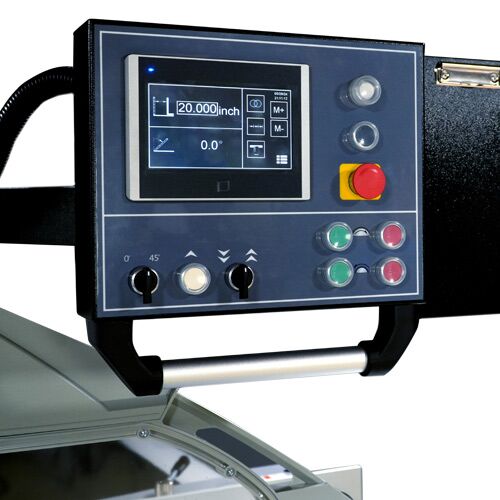

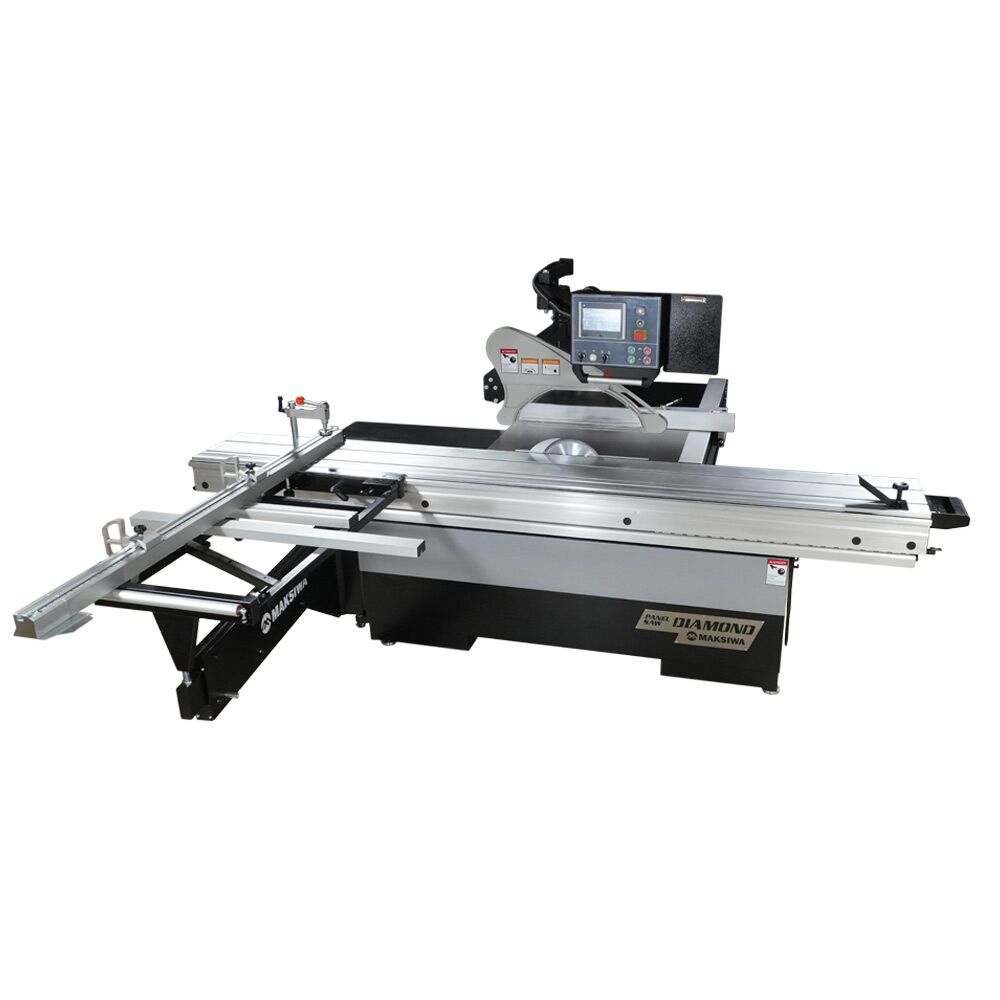

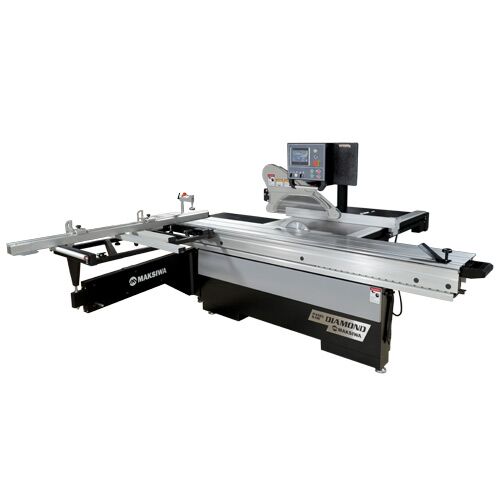

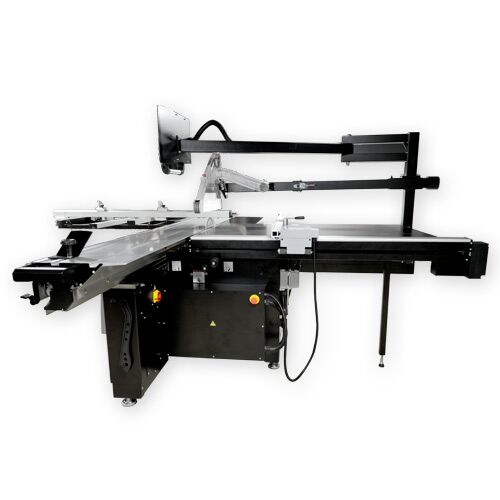

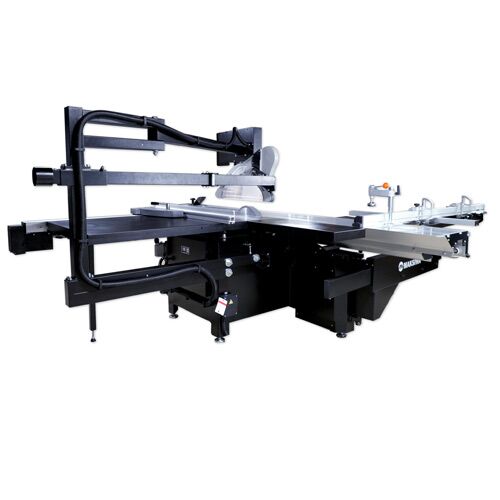

Introducing the BMD.3200.IR Diamond Sliding Panel Saw from Maksiwa, featuring an advanced touch screen panel, powerful 10-horsepower motor, and CNC rip fence for unparalleled precision.
Its robust construction ensures stability, while safety features and a dust collection system maintain a secure workspace. Backed by a two-year warranty and US-based support, it adapts to various cutting needs with ease.
Technical Information
| Technical Information | BMD.3200.IR |
|---|---|
| Main Motor | 10 HP/ 7.3 Kw |
| Main Blade Speed | 3,000/4,000/5,000 RPM |
| Max Blade Diameter | 14″ | 355mm |
| Main Blade Arbor | 1 3/16″ | 30mm |
| Main Blade Max cutting Height at 90° | 4″ | 101 mm |
| Main Blade Cutting Height at 45° | 2 3/4″ | 70mm |
| Scoring Motor | 3/4 HP / 8000 RPM .75 kw |
| Scoring Motor Blade | 4 3/4″ | 12mm |
| Scoring Blade Arbor | 3/4″ | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51″ | 1295mm |
| Crosscut Capacity | 126″ | 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78″ / 120″ | 1981mm / 3048 mm |
| Machine Working Dimensions (LxWxH) | 132″ x 137″ x 75″ | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35″ x 21″ x 34″ | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126″ x 14 ” | 3200 x 358 mm |

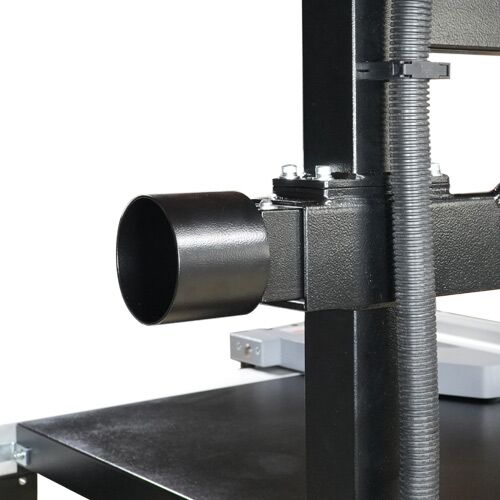

| Dust Collection Port (2) | 4″ | 100mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83″ x 45″ x 45″ | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133″ x 18″ x 15″ | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
