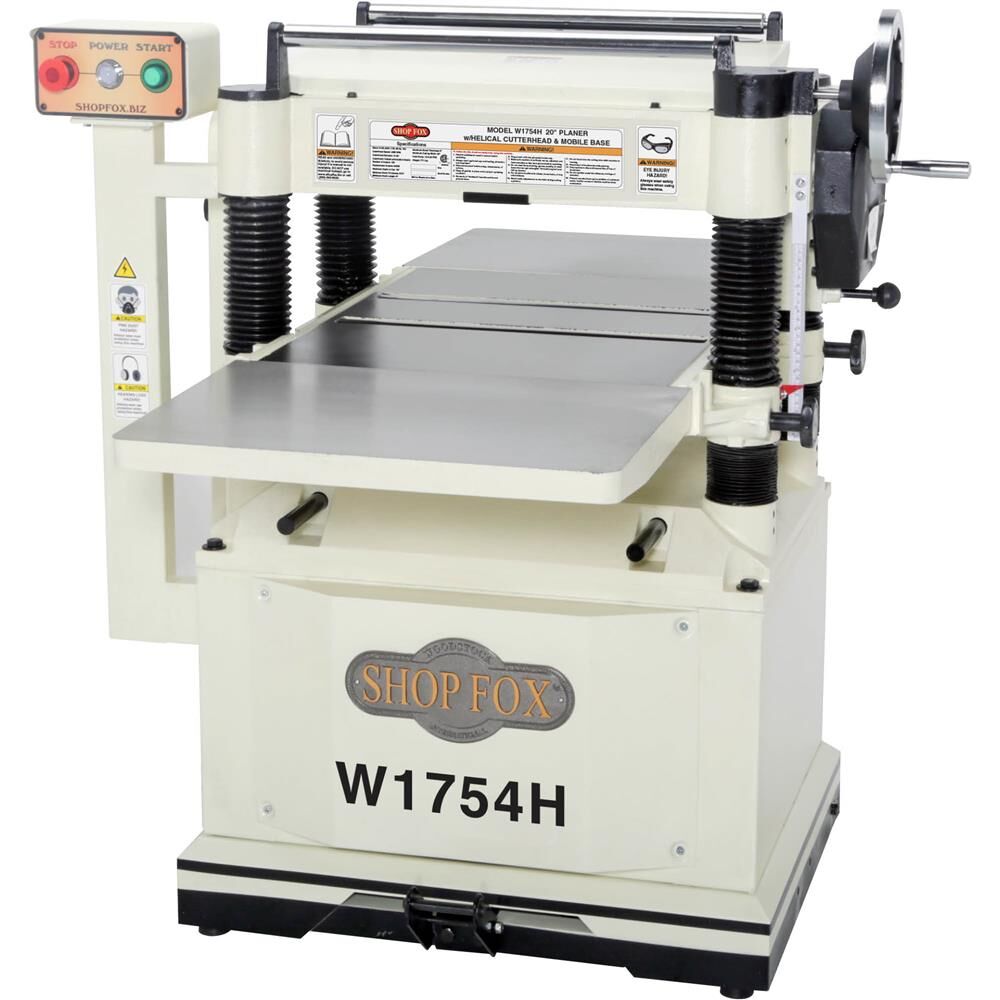

Shop Fox W1754H 20″ Planer with Built-in Mobile Base and Helical Cutterhead


Shop Fox W1754H 20″ Planer with Built-in Mobile Base and Helical Cutterhead



** We cannot DROP Ship to these states: Alaska, California, Hawaii, Louisiana, Maryland, Massachusetts, Mississippi, Rhode Island and Tennessee. Please call our office for availability**



Out of stock



With its built-in locking mobile base and pedestal-mounted switch, our Model W1754H helical cutterhead planer is easy to move and operate. Just press down on the lock lever with your foot and this planer is mobile. Standard features include a 55-5/8″ long precision-ground cast-iron table with the cast-iron extension wings, two feed speeds, return rollers, a 20″ x 8″ capacity, adjustable bed rollers, magnetic switch with thermal overload proection, and a 5 HP motor. Certified to CSA and UL standards.

Motor: 5 HP, 240V, single-phase, 19A
Maximum cutting width: 20″
Maximum cutting height: 8″
Minimum stock thickness: 3/16″
Minimum stock length: 8″
Maximum cutting depth: 1/8″
Feed rate: 16 FPM & 20 FPM
Cutterhead type: Spiral with German-made indexable carbide inserts
Cutterhead diameter: 3-1/8″
Cutterhead speed: 5000 RPM
Table size including wings: 55-1/2″L x 21-1/2″W x 1-3/4″T
Overall dimensions: 55-1/2″L x 43-1/2″W x 45-7/8″H
Four column support with table locks
Pedestal mounted magnetic safety switch w/ thermal protection

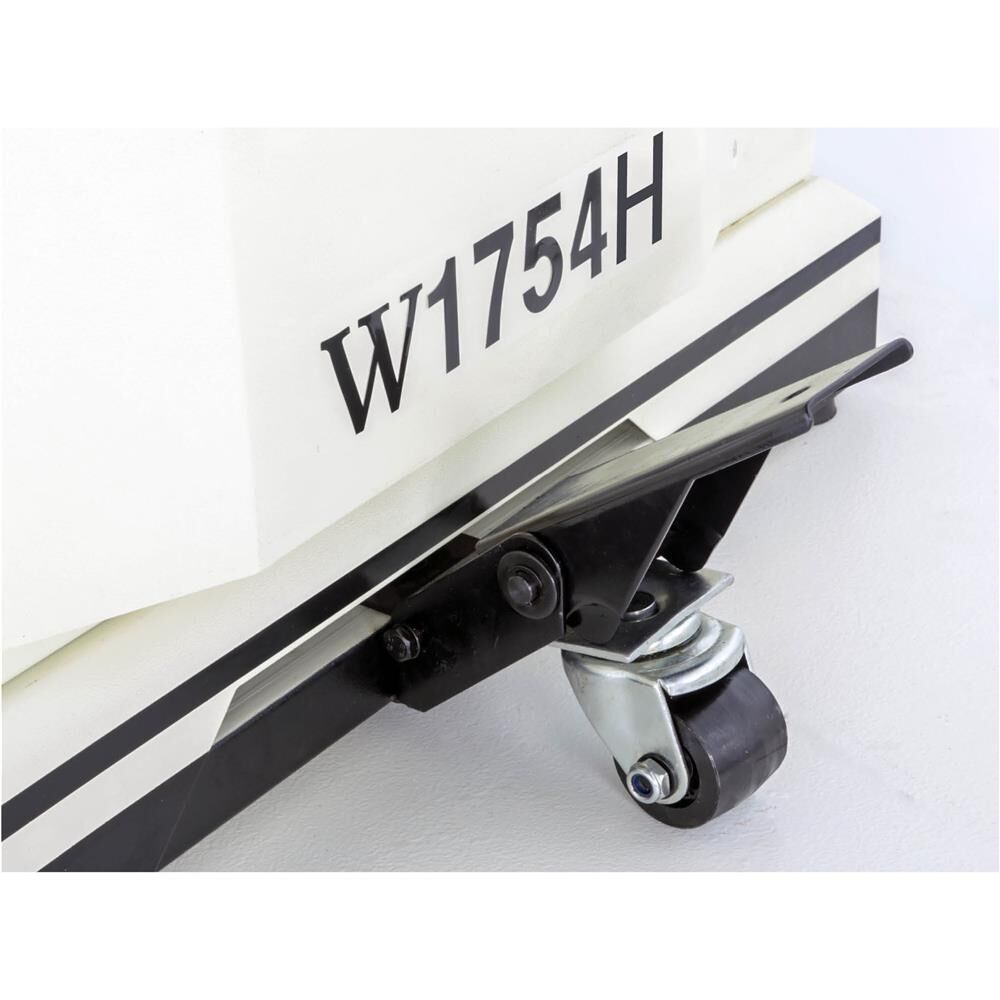

Built-in mobile base
Precision-ground cast-iron extension wings
Approximate shipping weight: 920 lbs.
Number of Indexable Inserts: 98

Additional information

Weight 924 lbs
Dimensions 43 × 29 × 48 in
