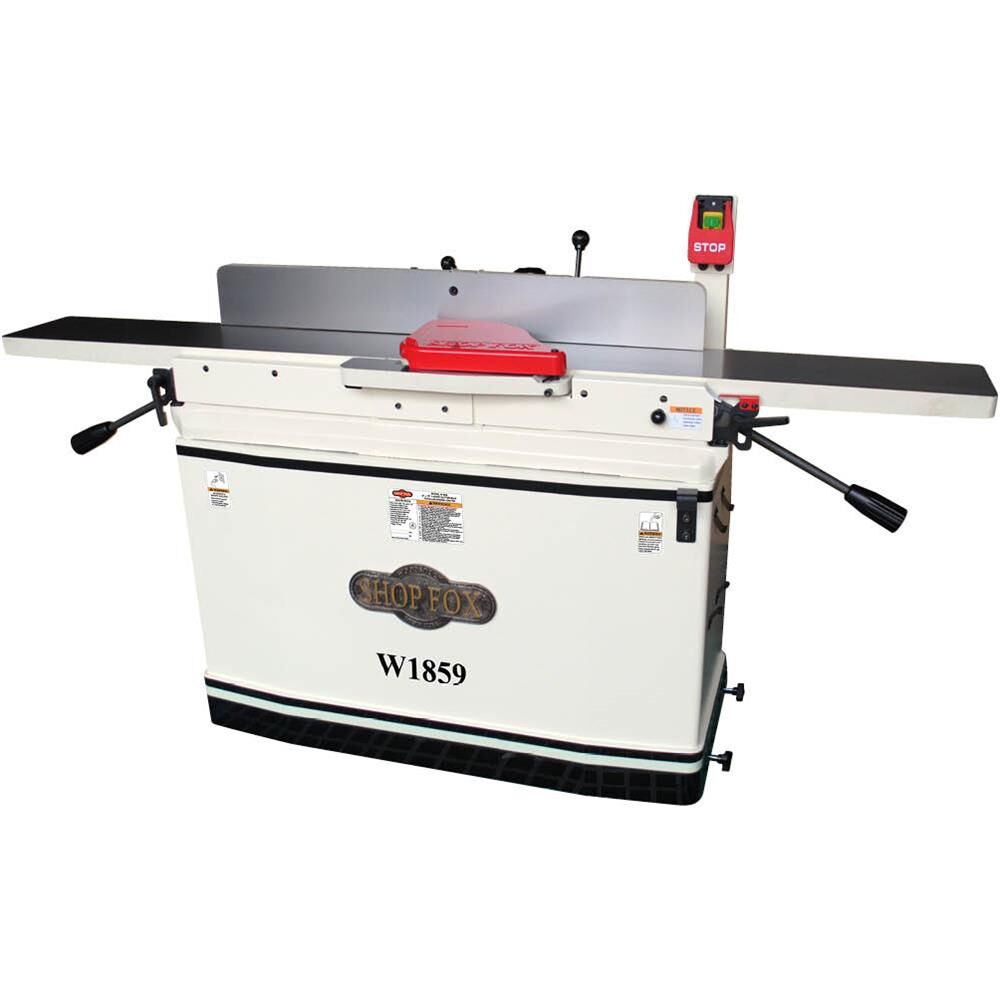

Shop Fox W1859—8″ x 76″ Parallelogram Jointer with Mobile Base

$2,000.00 $1,599.95

W1859—8″ x 76″ Parallelogram Jointer with Mobile Base

Manual                        Warranty

** We cannot DROP Ship to these states: Alaska, California, Hawaii, Louisiana, Maryland, Massachusetts, Mississippi, Rhode Island and Tennessee. Please call our office for availability**





Available on backorder

Compare
SKU: WSK:W1859 Categories: ,

Description

Description
This 8″ Parallelogram Jointer features extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted power switch is conveniently located for easy on and easy off. This version features a straight knife cutterhead.

Specifications

  • Motor: 3 HP, 230V, single-phase
  • Total table size: 9″ x 76″
  • Fence size: 4-5/8″ x 38″
  • Maximum depth of cut: 1/8″
  • Rabbeting capacity: 1/2″
  • Cutterhead speed: 5500 RPM
  • Cutterhead diameter: 3-1/16”
  • Cuts per minute: 22,000
  • Cutterhead knives: 4
  • Lever-adjusted table height with depth gauge
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Precision-ground cast-iron tables
  • Extra-long 40″ infeed table
  • Powder-coated finish
  • 4″ dust port with built-in dust chute
  • Parallelogram table design
  • Power transfer: Poly V-belt
  • Switch: magnetic push-button switch with large off paddle for safety
  • Fence system: positive stops at +/- 45 degrees and 90 degrees
  • Approximate shipping weight: 470 lbs
