MAKSIWA – SLIDING PANEL SAW PLATINUM – BMP.3200.IR

$10,999.00

MAKSIWA – SLIDING PANEL SAW PLATINUM – BMP.3200.IR

Warranty

Compare

Description

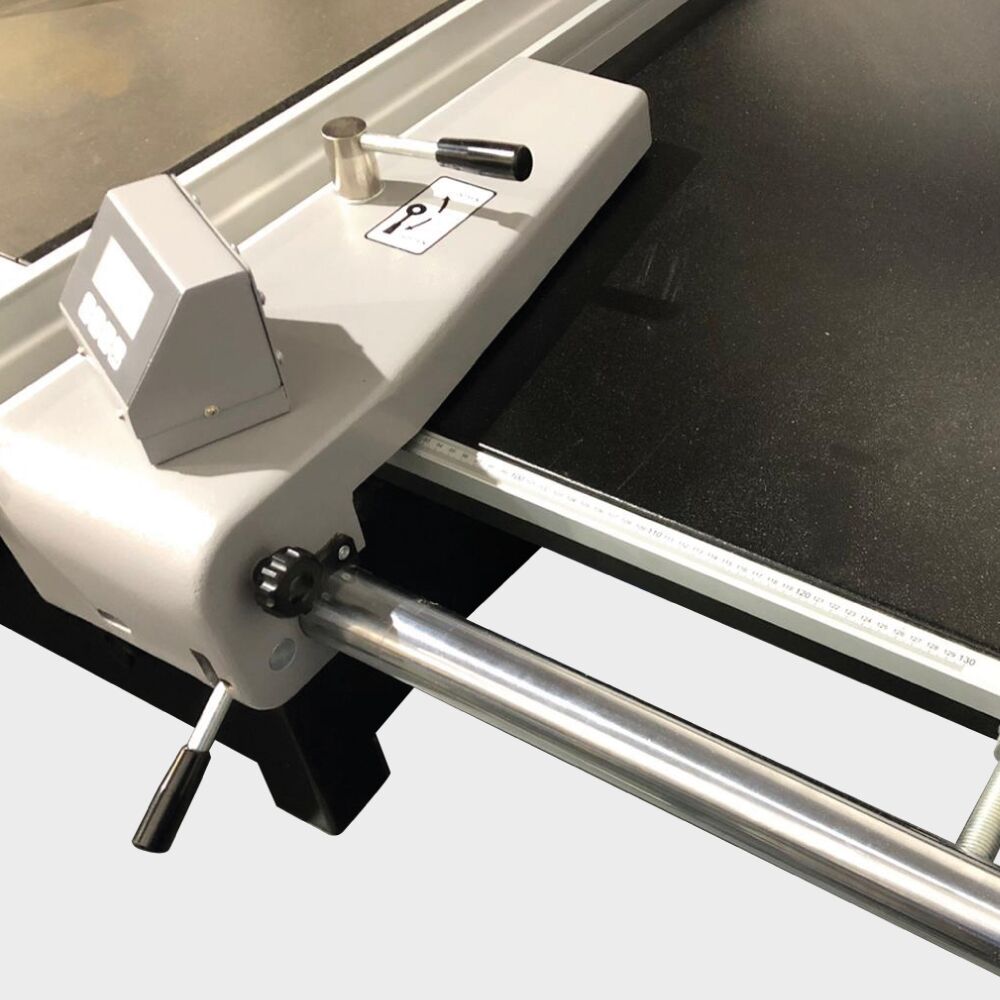

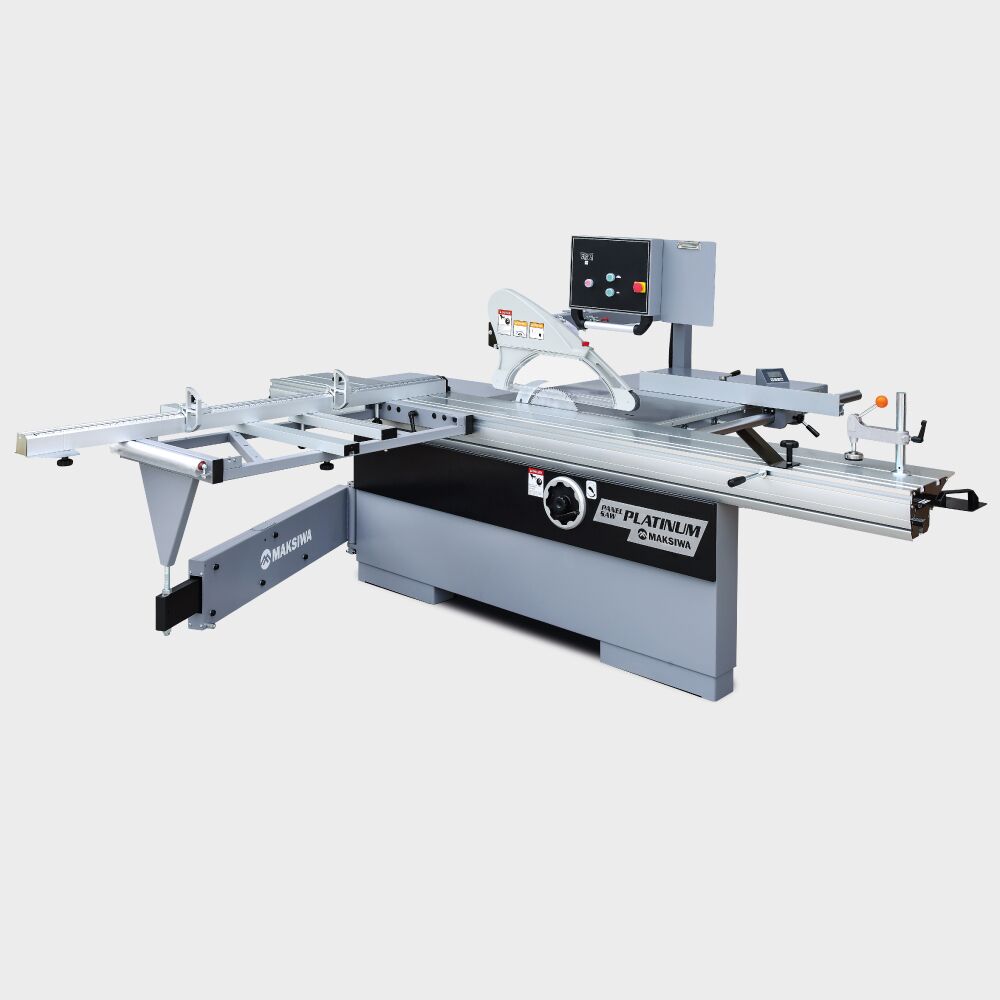

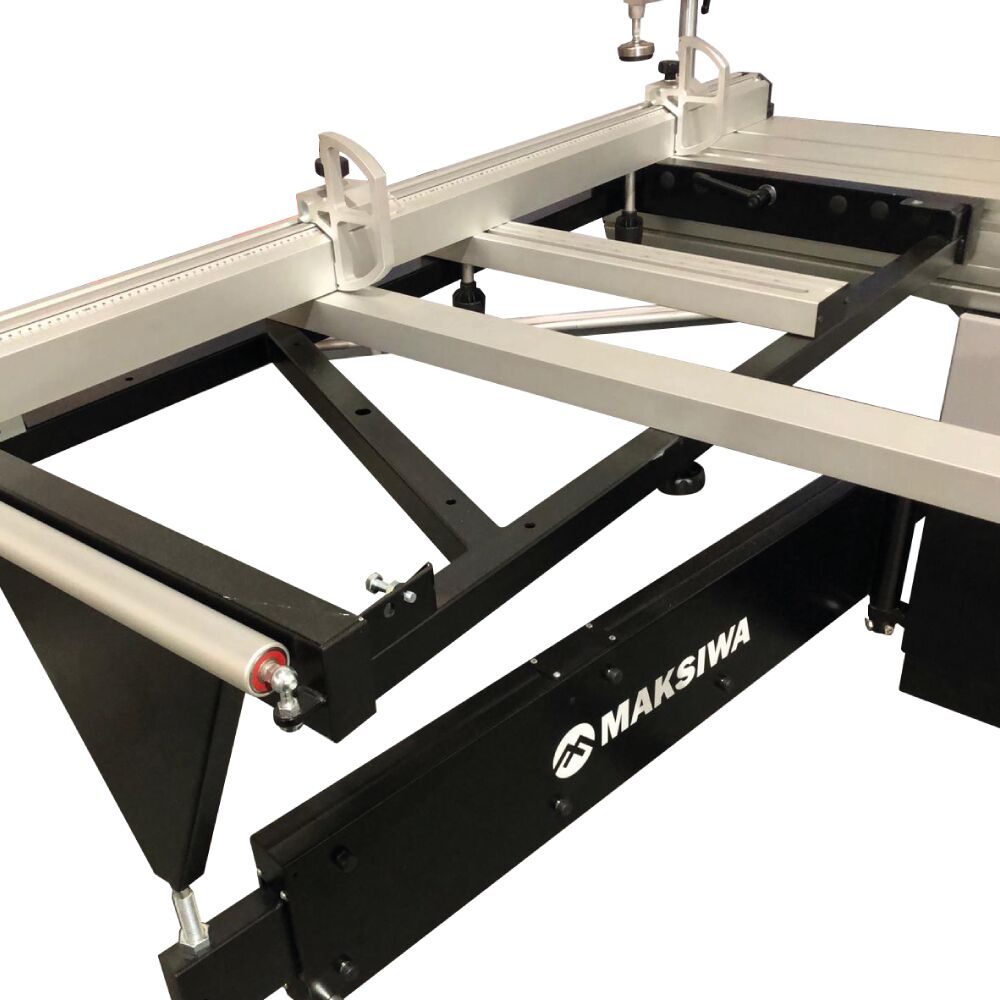

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.

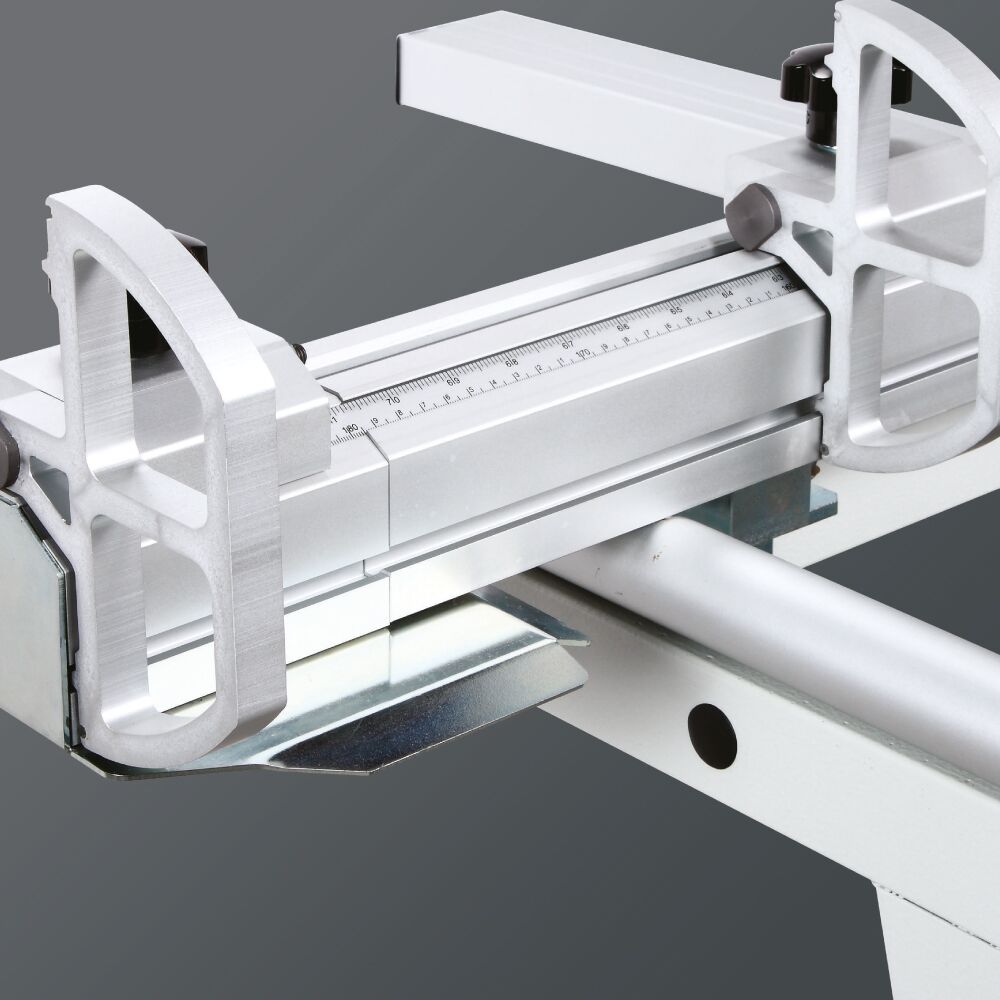

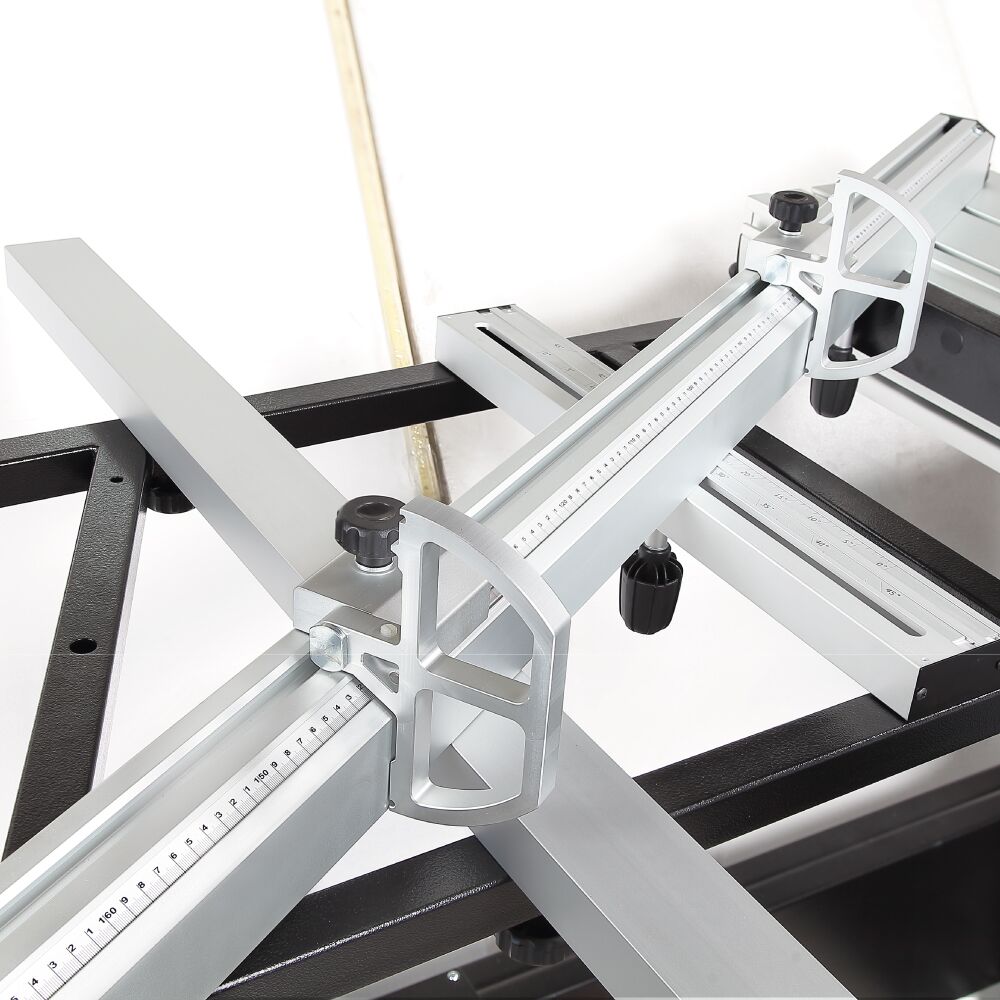

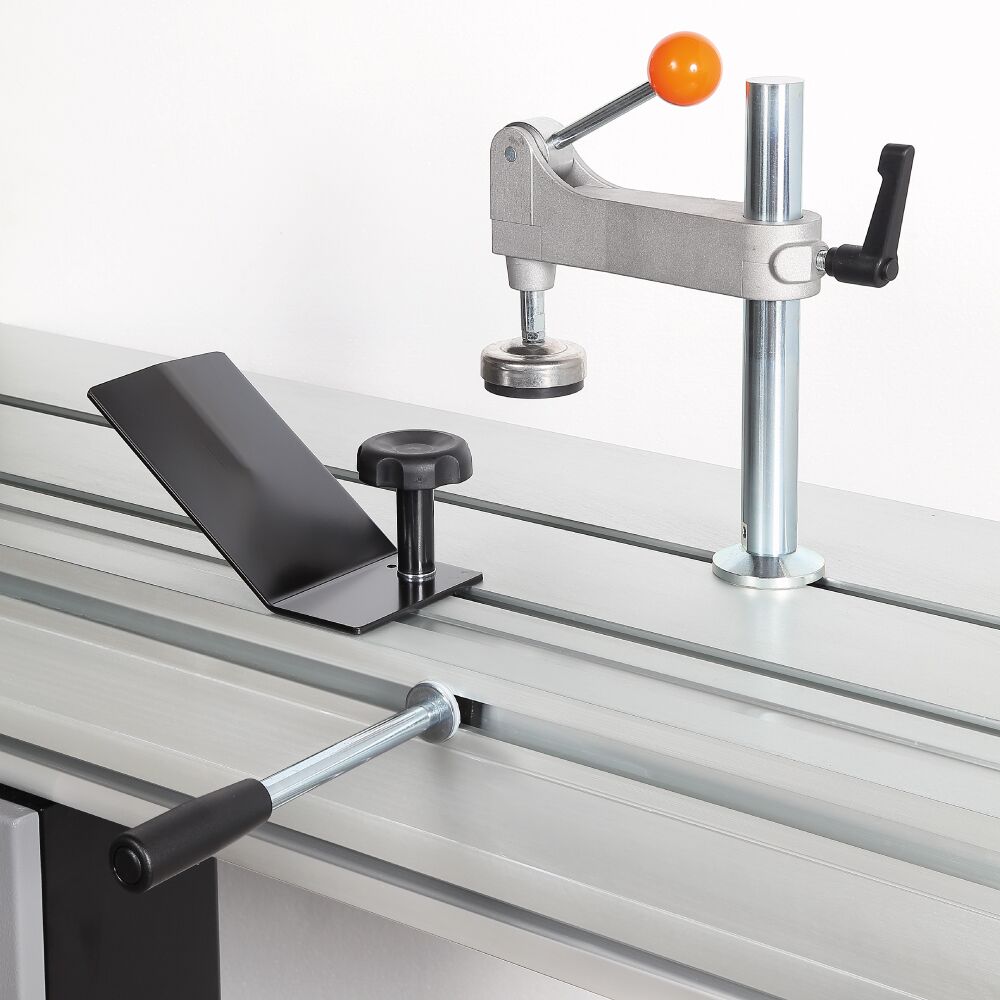

Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.

Maksiwa SLIDING PANEL SAW PLATINUM – BMP.3200.IR





1. MOBILE ARM
2. MOBILE TABLE SUPPORT
3. BLADE TILT CONTROL HANDLE
4. WEDGE CLAMP

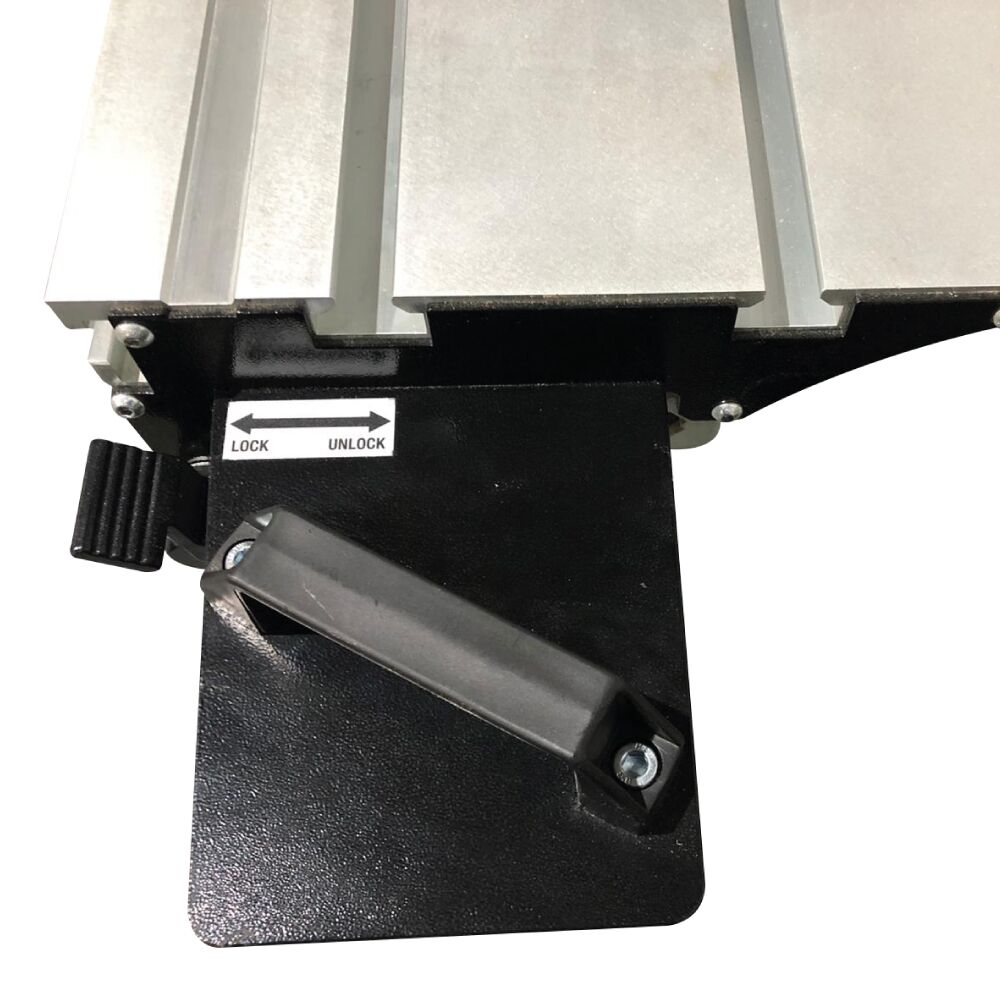

5. MAIN TABLE LOCK
6. WOOD PANEL CLAMP
7. REAR EXTENSION TABLE
8. DIGITAL DISPLAY FOR RIP FENCE
9. REAR EXTENSION TABLE GUIDE
10. REAR EXTENSION TABLE
11. EMERGENCY BUTTONS/SWITCHES

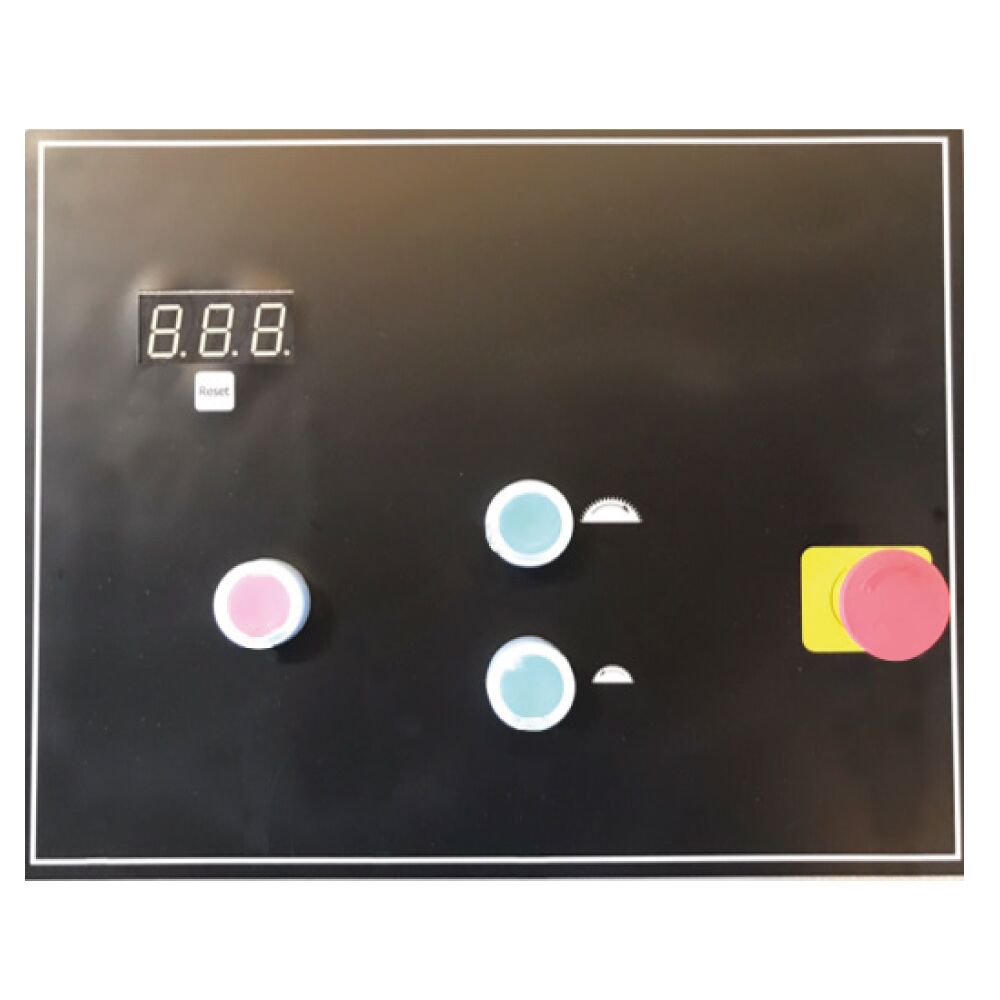

12. CONTROL PANEL
13. DUAL BLADE PROTECTOR COVER
14. SUPPORT TABLE
15. SCORING BLADE ADJUSTMENT HANDLES
16. MEASURING TAPE
17. ALUMINUM TABLE GUIDE
18. WOOD PANEL STOPPER
19. ALUMINIUM GUIDE EXTENSIONS



Maksiwa SLIDING PANEL SAW PLATINUM – BMP.3200.IR

CUTTING CAPACITY
A Manual adjustment cutting width: 59″
B Crosscut fence closed: 78″
C Crosscut fence extended: B + C = 135″
D Sliding table travel front: 204″
E Sliding table travel back: 205″



TECHNICAL INFORMATION
Sliding table dimension 126” x 15 ½” – 3200 x 360 mm
Cast Iron fixed table 21.6” x 35.3” / 896 x 548 mm
Extension table (rear) 37 ½” / 952 x 896 mm
Extension table (front) 12.6” x 32.7” / 830 x 320 mm
Main saw blade (Max.) 305 mm
Main saw bore 30 mm
Max. cutting height at 90 (355 mm) 4 13” / 90 mm
Max. cutting height at 45 (355 mm) 2 3/4” / 63 mm
Main motor power 7.5 HP (3 ph)
Main blade speed 4000 rpm
Scoring saw blade 120 mm
Scoring saw blade bore 20 mm
Scoring blade motor power 3/4 HP (0.56 kw)
Scoring blade speed 8000 rpm
Cutting width 1,300 mm
Main saw blade tilting adjustment Manual (0 ~ 45°)
Main saw height adjustment Manual
Scoring saw adjustment Manual
Dust collection system (For overhead guard) 4.72” 120/ 64 mm (120/100 mm)
Machine dimensions (extended) L 192” X W 280” X H 65’’
Warranty 2 Years

BLADE
TECHNICAL INFORMATION
Main blade diameter 400 mm (15.75”)
Main blade arbor size 1 3/16” (30 mm)
Scoring blade diameter 120 mm (4 ¾’’)
Scoring blade arbor size 3/4” (20 mm)
Max tilt 45°
Max depth cut 3 15/16”
Max cutting length 120”

DUST COLLECTOR
Port 1 diameter 4’’
Port 2 diameter 4’’
Minimum CFM needed 1000 CFM

ELECTRICAL OPTIONS
3 PHASE MODEL 220 V
Main motor 7,5 HP – 24 Amps
Main motor – Non loaded blade speed 4000 RPM
Scoring motor 3/4 HP – 6 Amps
Scoring motor – Non loaded blade speed 8000 RPM



Additional information

Weight 1752 lbs
Dimensions 140 × 133 × 65 in
