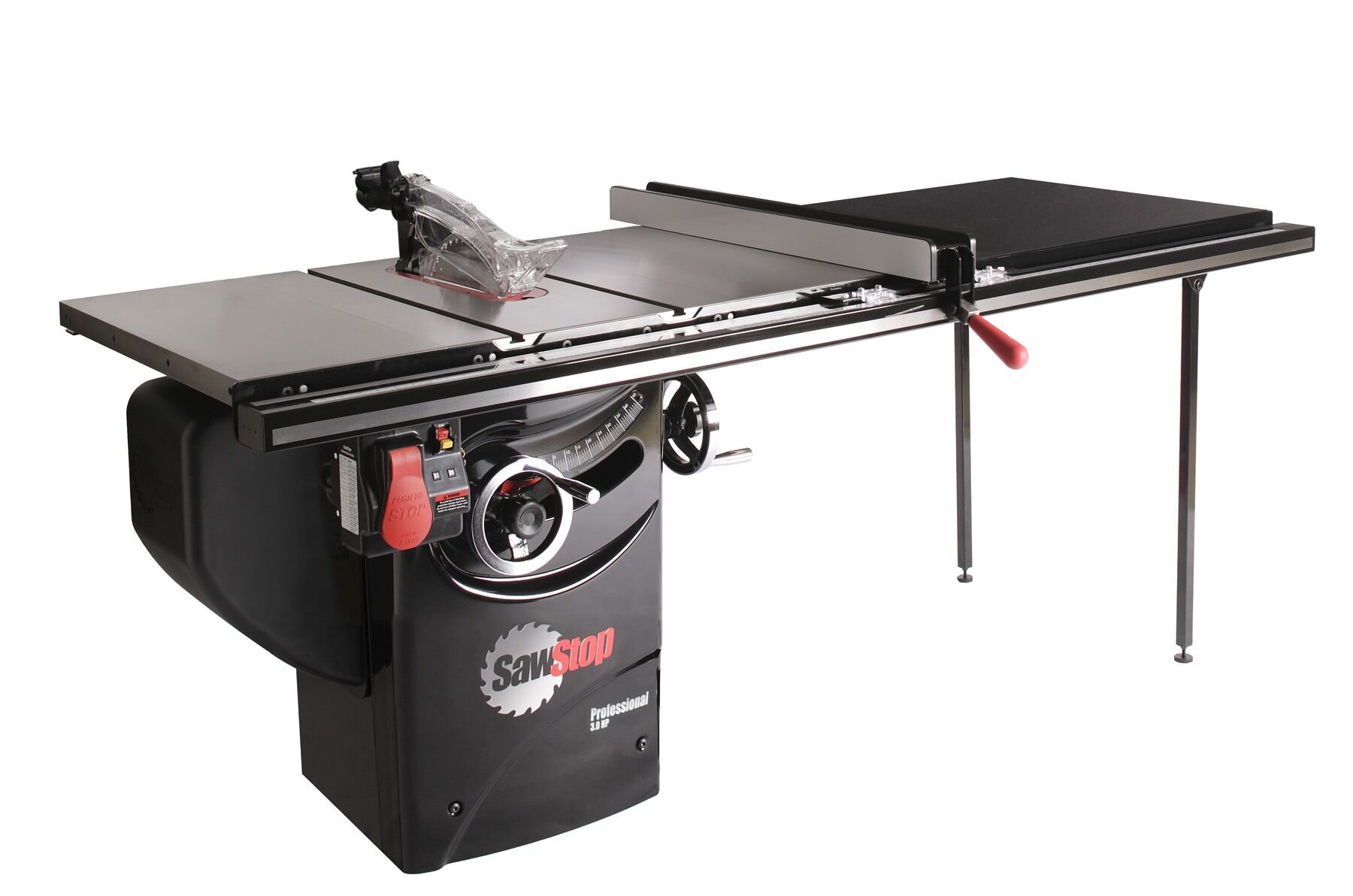

SAWSTOP Professional 3HP, 230V 60Hz 52″ Pro T-Glide Fence System PCS31230-TGP252


Shipping Charges to Lower 48 states: $425.00 ea.

Availability estimate 2-4 weeks

**Shipping to Alaska & Hawaii may not be available, or may incur additional charges. Please contact our office for more information**





Motor: (all 60Hz, TEFC): 3 HP (1.75 available)
Cabinet footprint:19 3/8″ W x 19 3/8″ D
Cast iron table:20″ W x 27″ D
Cast iron table (w/ extension wings):44″ W x 27″ D
Extension wings:12″ W x 27″ D each
Extension table 52 in:40 1/8″ W x 27″ D
Shipping dimensions (saw body only):43″ W x 31″ D x 30″ H
Weights – table saw only:317 lbs (1.75 HP), 335 lbs (3 HP)
Weights – w/ 52 in fence systems:431 lbs (1.75 HP), 449 lbs (3 HP)
Weights – (optional cast iron wings):N/A
Shipping weight (approx.):390 lbs (table saw only)
Blade:40-tooth, prof. grade, 5/8″ arbor
Blade diameter:10″
Blade tilt:Left
Blade kerf:0.118″ (3mm)
Blade plate thickness:0.078″ (2mm)
Max. depth of cut, blade at 0º:3 1/8″
Max. depth of cut, blade at 45º:2 1/4″
Max. rip, right of blade – 52 in:52″ (w/ 52″ rails)
Max. rip, left of blade:12″
Max. rip, left of blade (options):N/A
Dado diameter:8″ (requires 8R2 brake, dado insert)
Dado max. width:13/16″
Arbor diameter at blade:5/8″
Main bearing size:62mm OD x 30mm ID
Second bearing size:52mm OD x 25mm ID
Table in front of blade (max. elevation):10 1/4″
Table behind blade (max. elevation):7 1/2″
Arbor Runout:0.001″ Maximum allowable runout
Table flatness measured diagonally:0.010″ Maximum gap
Blade alignment with miter slot:0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual:±0.25º
Alignment between splitter and blade:0.010″ Maximum difference
Miter slots T-shaped:3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center:11 1/8″ center-to-center
Miter slots info:5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter:4″
Riving knife / splitter thickness:0.090″ (2.3 mm)
Dust collection blade guard (standard on 3 HP saws)(optional on 1.75 HP saws):polycarbonate, extends 1-3/16″ right of blade
Blade guard (dust collection) port diameter:1-1/2″ Outside, 1-1/4″ Inside
Micro blade guard (standard on 1.75 HP saws):polycarbonate, extends 1″ right of blade
Insert:zero clearance, phenolic core, melamine surfaces
Hand wheels:7″ diameter, cast iron w/ chrome handle
Belts:2 V-ribbed belts – arbor b. static dissipative
Overall saw dimensions:44″ W x 29 3/4″ D x 34″ H
Overall saw dimensions 52 in:85 1/4″ W x 33″ D x 34″ H

Additional information

Weight 528 lbs
